Occupant Classification System Replacement (TT-212-52B-001)
Publication date: 2014-10-07Reference number: TT-212-52B-001
OCCUPANT CLASSIFICATION SYSTEM REPLACEMENT
TECHNICAL SERVICE BULLETIN
Reference Number(s): TT-212-52B-001, Date of Issue:
October 7, 2014
| MITSUBISHI: | 2014-15 Outlander |
SERVICE INFORMATION

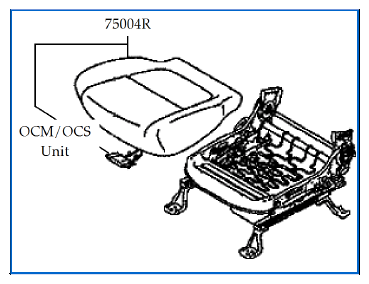

OCCUPANT CLASSIFICATION SYSTEM REPLACEMENT - 2014-15 Outlander . The occupant classification unit (combined occupant classification module with integrated occupant classification sensor) is attached to the underside of the right front seat cushion not the seat frame. There is a detachable connector between the two parts that suggest they are separate, but they are one part and not available separately. To replace the occupant classification unit, you must replace the seat cushion (PNC 75004R). The seat frame is not fitted with any occupant classification parts.
