LEMON Manuals: Even more car manuals for everyone
Home >> Mitsubishi >> 2013 >> RVR ES >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 1 (Propeller Shaft) >> Propeller Shaft >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

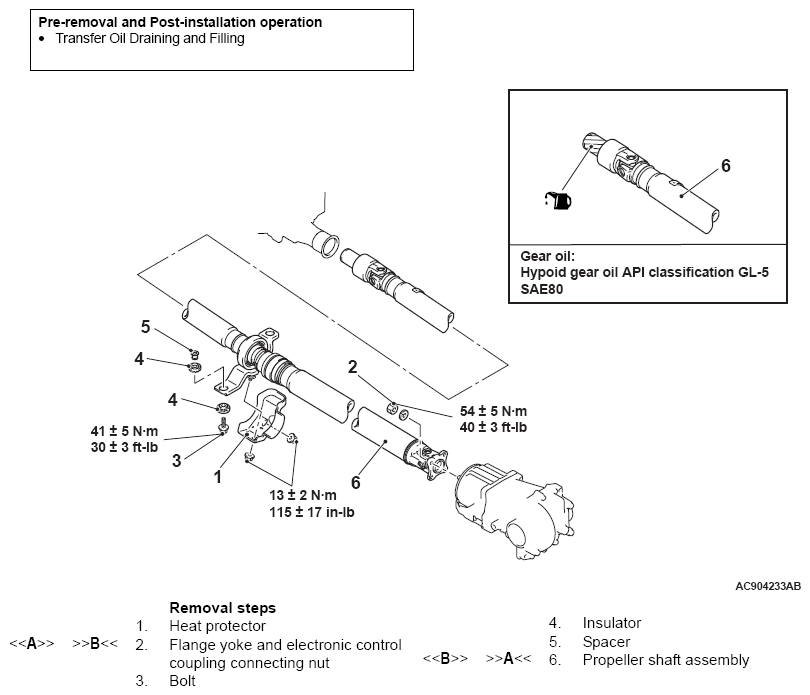

Fig 1: Propeller Shaft Components With Torque Specifications
G07047953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
