Removal And Installation: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

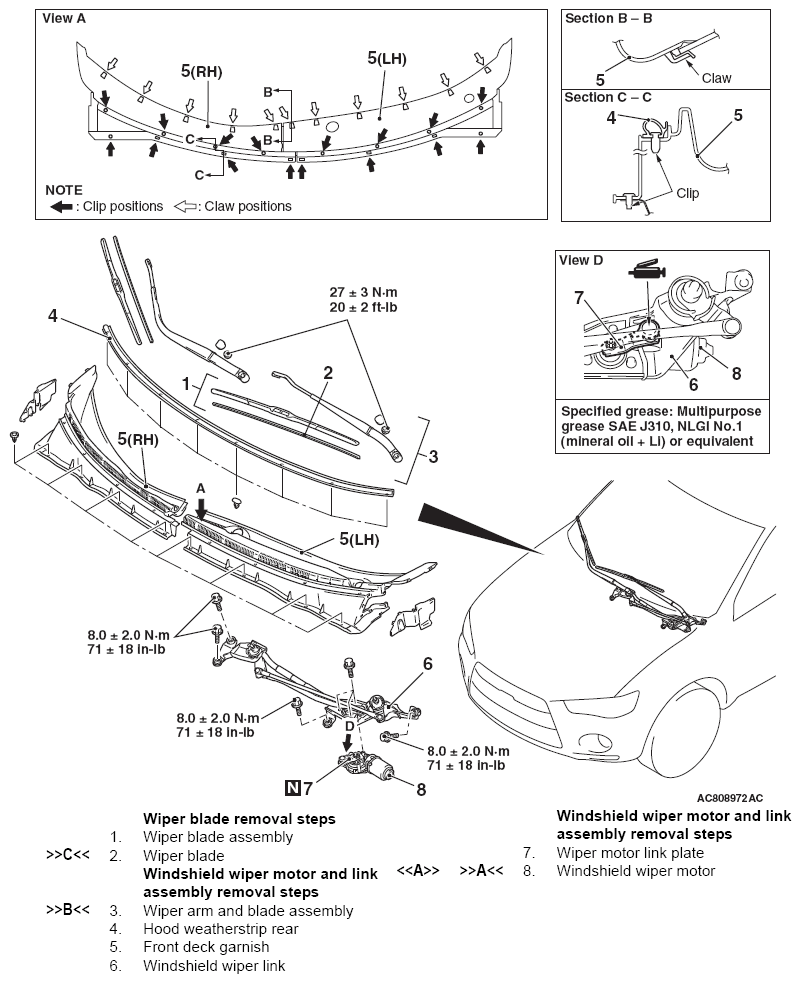

Fig 1: Exploded View Of Windshield Wiper With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991955: M.U.T.-III sub-assembly
MB991223: Harness set

NOTE: For removal and installation of the wiper and washer switch, refer to REMOVAL AND INSTALLATION .
