Home >> Mitsubishi >> 2013 >> Lancer Evolution MR >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Overhaul - 2.0L - Lancer Evolution >> Generator And Ignition System >> Removal And Installation >> Notes

Removal And Installation: Notes

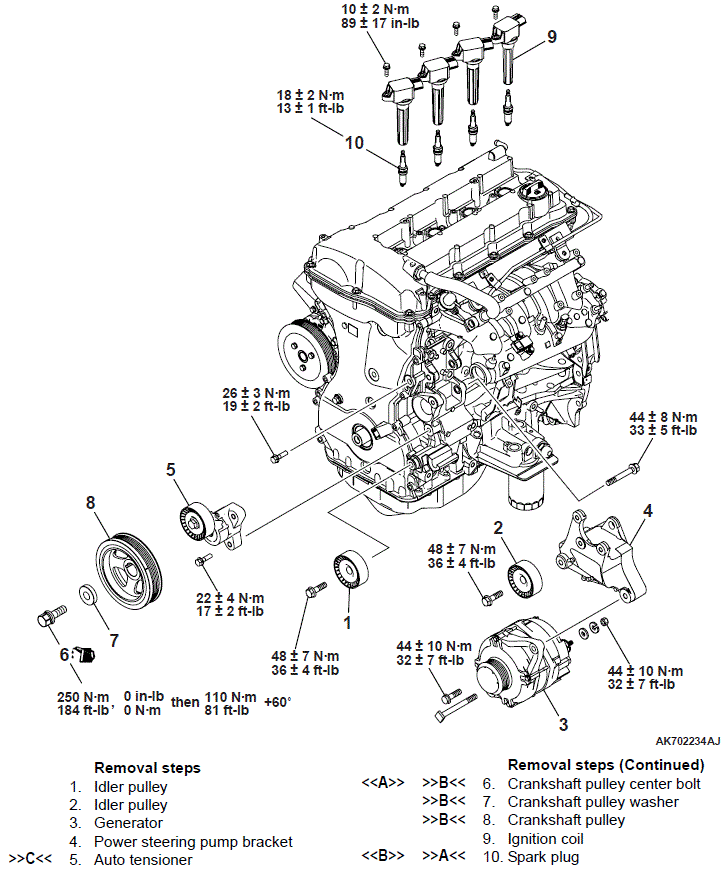

Fig 1: Removal/Installation Of Generator & Ignition System With Torque Specifications
G00538244Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
