Stiffener And Damp Sheet Application Locations

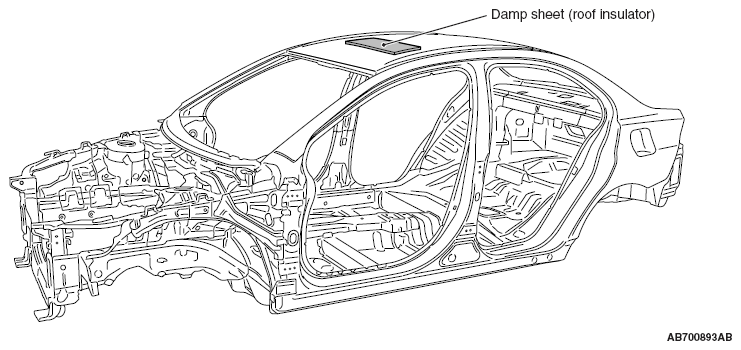

A damp sheet (roof insulator) <Vehicles without sunroof (aluminum panel)> on the inner side of the roof panel and a stiffener on the inner side of the rear door panel outer have been adopted for higher surface rigidity.
NOTE:
- The main contents of a stiffener are epoxy resin. It comes in a sheet form and contains a mixture of glass fiber and filler, and cures (stiffens) when heated.
- No spare part of the stiffener for repair is available in the field. If the stiffener is damaged, replace it together with the panel.

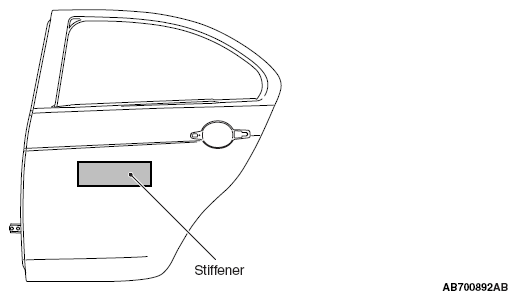

Rear Door
