Disassembly And Assembly: Notes

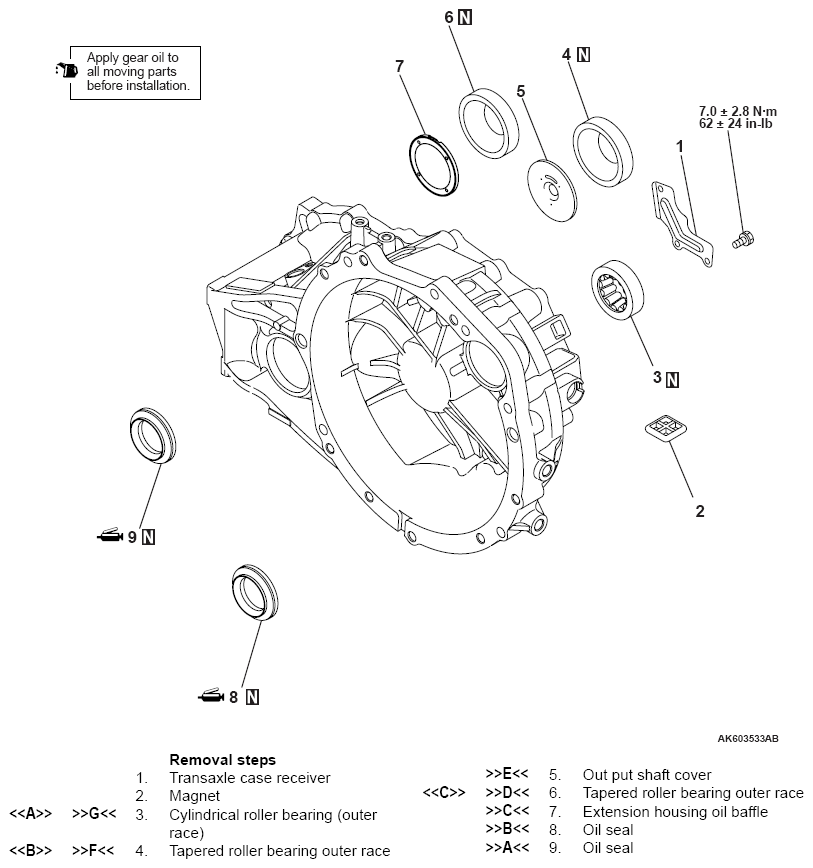

Fig 1: Clutch Housing Disassembly/Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990211: Slide hammer
• MB992039: Slide hammer puller
• MD998200: Oil seal installer
• MD998550: Extension housing seal installer
• MB991445: Bush remover & installer base
• MB990938: Installer bar
• MD999547: Oil seal installer
• MB990699: Differential oil seal installer
