RVR ES
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Power Plant Mount
>>
Transaxle Mounting
>>
Removal And Installation
>>
CVT
Removal And Installation: CVT

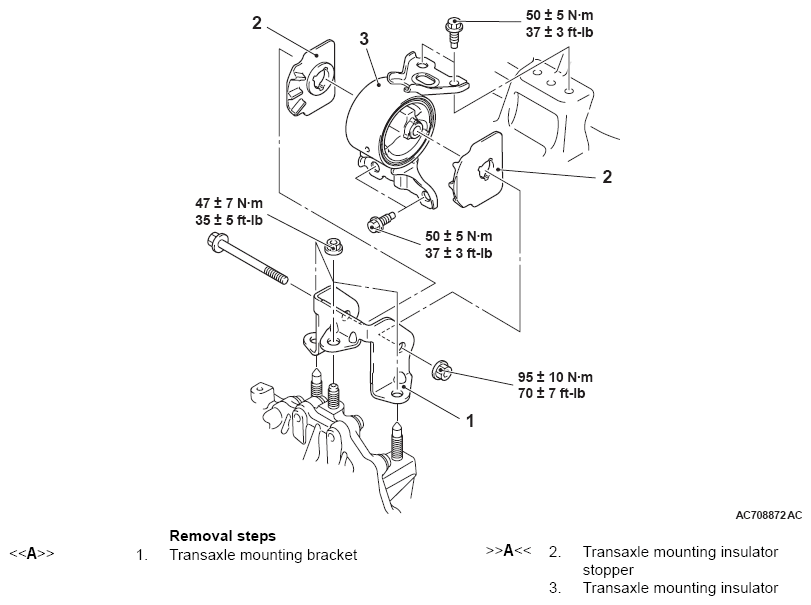

Fig 1: Transaxle Mounting Replacement Components With Torque Specifications (CVT)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
