Removal And Installation: Notes

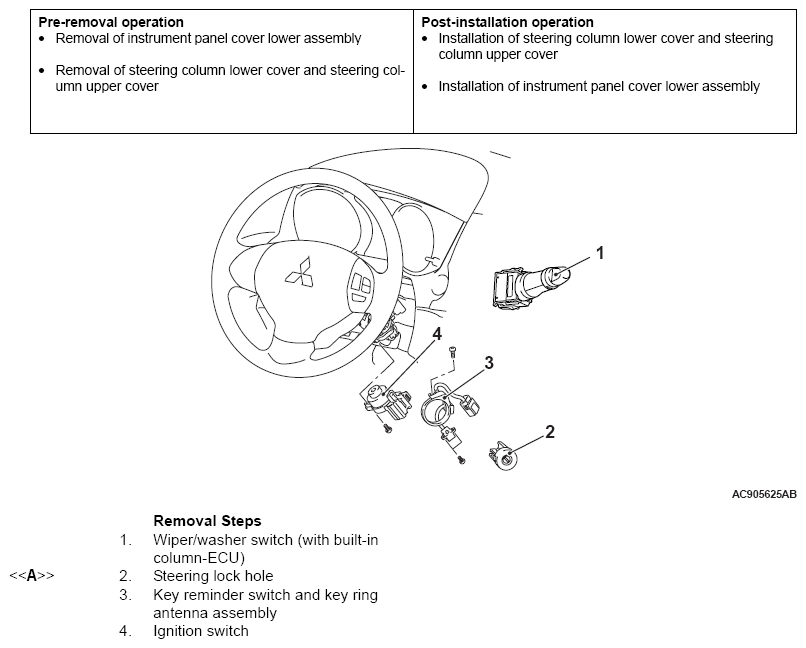

Fig 1: Identifying Ignition Key Remove/Install Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Other than the single unit supplying of key reminder switch and key ring antenna assembly as well as of ignition switch, they are also supplied as the mechanical steering lock assembly (mechanical steering lock, steering lock bracket, steering lock bolt, key reminder switch and key ring antenna assembly, and ignition switch are supplied as a set). For how to remove the mechanical steering lock, steering lock bracket, and steering lock bolt, refer to DISASSEMBLY AND REASSEMBLY OF STEERING SHAFT .
