General Information: Structure

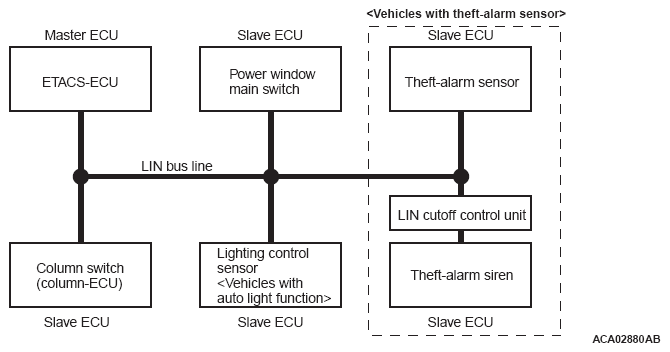

Fig 1: Local Interconnect Network - Structure

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Master and slave ECUs are connected to the LIN bus lines. The master ECU is the ETACS^*1 -ECU, and the slave ECUs are the column switch (column-ECU), the lighting control sensor^*2 , the power window main switch, the theft-alarm siren (via LIN cutoff control unit^*3 )^*4 and the theft-alarm sensor^*4 . The master ECU requests these slave ECUs to communicate each other via communication lines.

NOTE:

^*1 : ETACS (Electronic Time and Alarm Control System)
^*2 : Vehicles with lighting control sensor
^*3 : The LIN cutoff control unit is a relay circuit to turn ON/OFF the LIN communication of theft-alarm siren. An ECU is not incorporated in the LIN cutoff control unit.
^*4 : Vehicles with theft-alarm sensor
