Door Entry Function

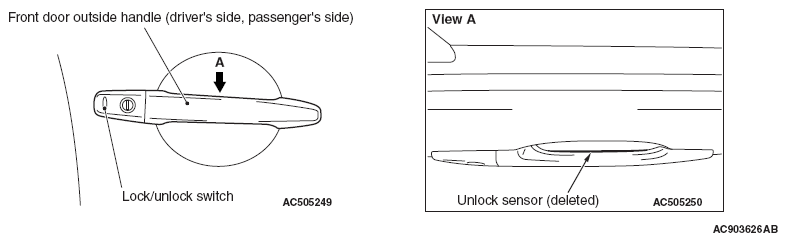

Fig 1: Identifying Lock/Unlock Switch And Unlock Sensor (Deleted)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

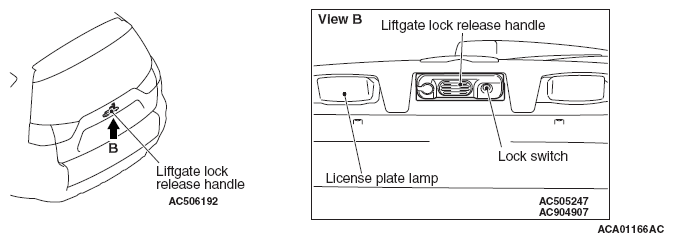

Fig 2: Identifying Liftgate Lock Release Handle, Lock Switch, And License Plate Lamp

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Due to the abolishment of the unlock sensor for the door outside handle (driver's/passenger's side), the lock switch has been changed to a lock and unlock switch. The unlock/lock control has been changed. The other service procedures are the same as before.
