Control Of Unlocking Operation
Control Of Unlocking Operation

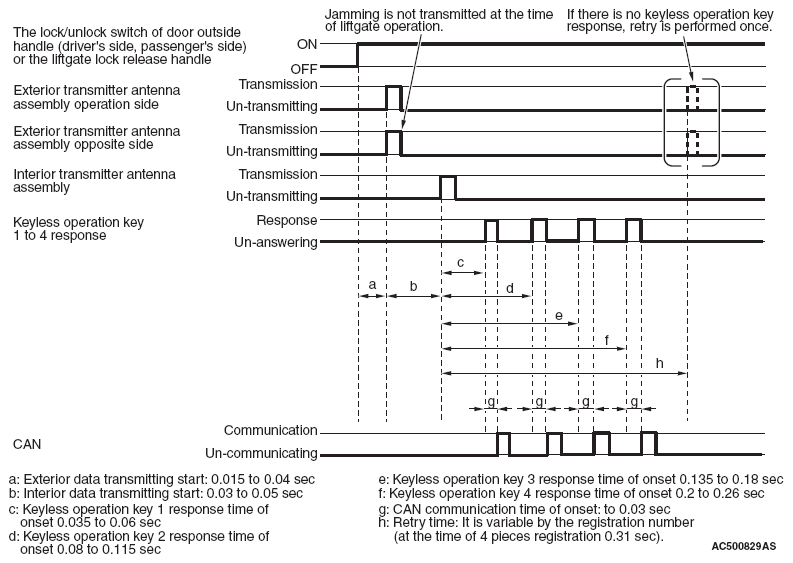

Fig 1: Control Of Unlocking Operation Reference Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
