Removal And Installation: Notes

CAUTION: The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.

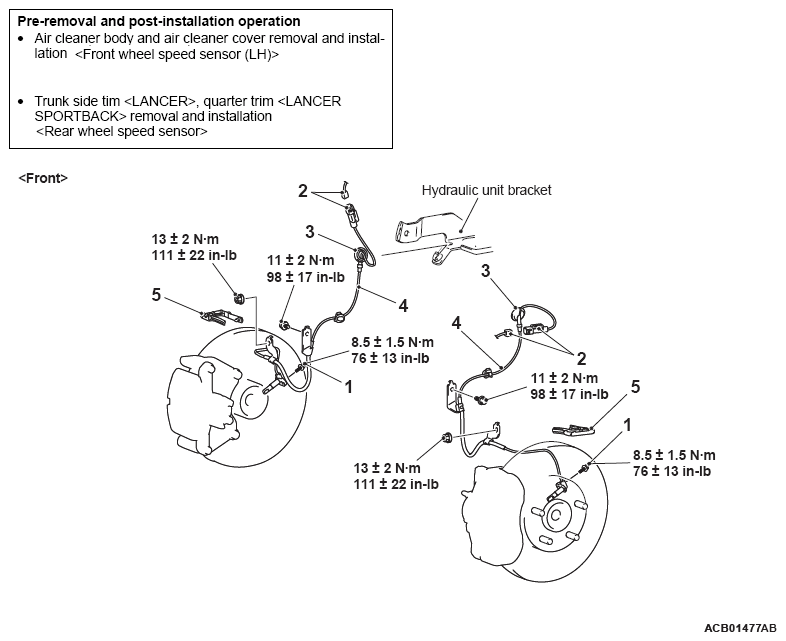

Fig 1: Front Wheel Speed Sensor Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Rear Wheel Speed Sensor Components With Torque Specifications (FWD And AWD-Type B)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

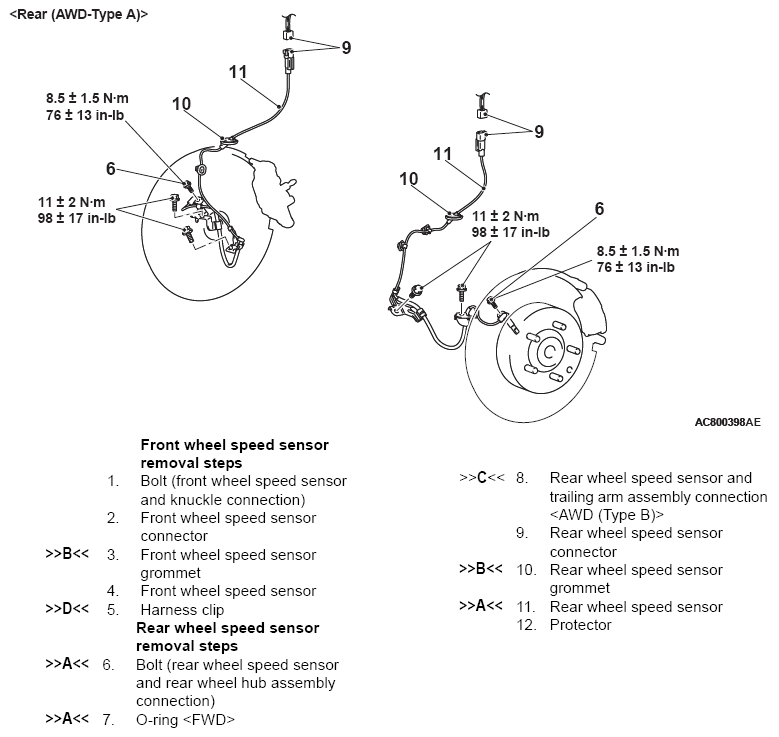

Fig 3: Rear Wheel Speed Sensor Components With Torque Specifications (AWD-Type A)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The vehicle speed detection encoder is integrated with the front wheel bearing and the rear wheel hub assembly, which cannot be disassembled.
