Removal And Installation: Notes

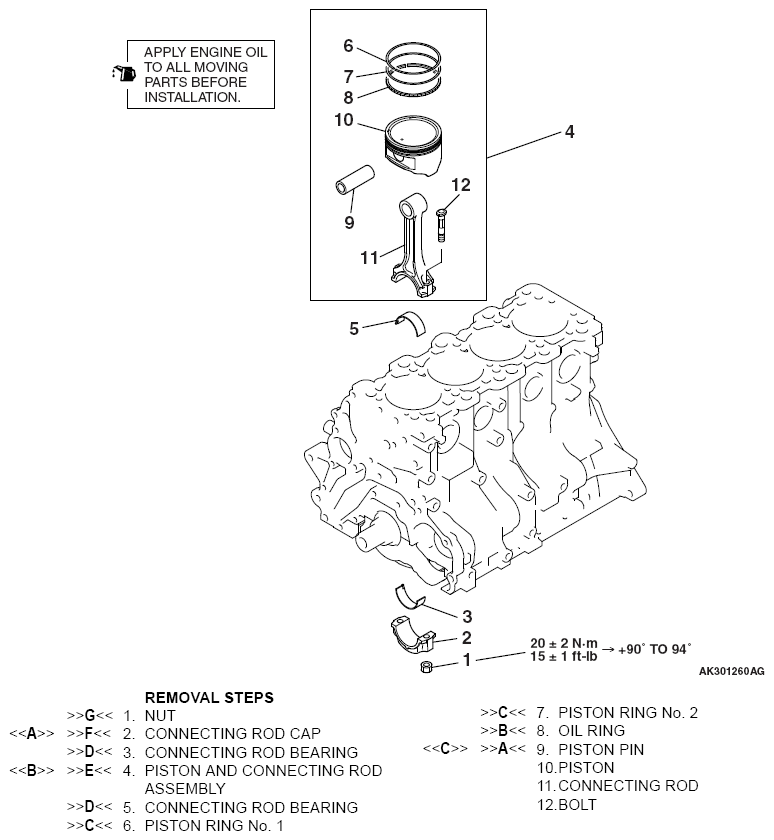

Fig 1: Piston & Connecting Rod Components With Torque Specifications
G06716778Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
