Home >> Mitsubishi >> 2012 >> Galant ES >> Repair and Diagnosis >> Engine Mechanical >> Engine Intake System & Exhaust System >> Exhaust Manifold >> Removal And Installation - 2.4L Engine >> Notes

Removal And Installation - 2.4L Engine: Notes

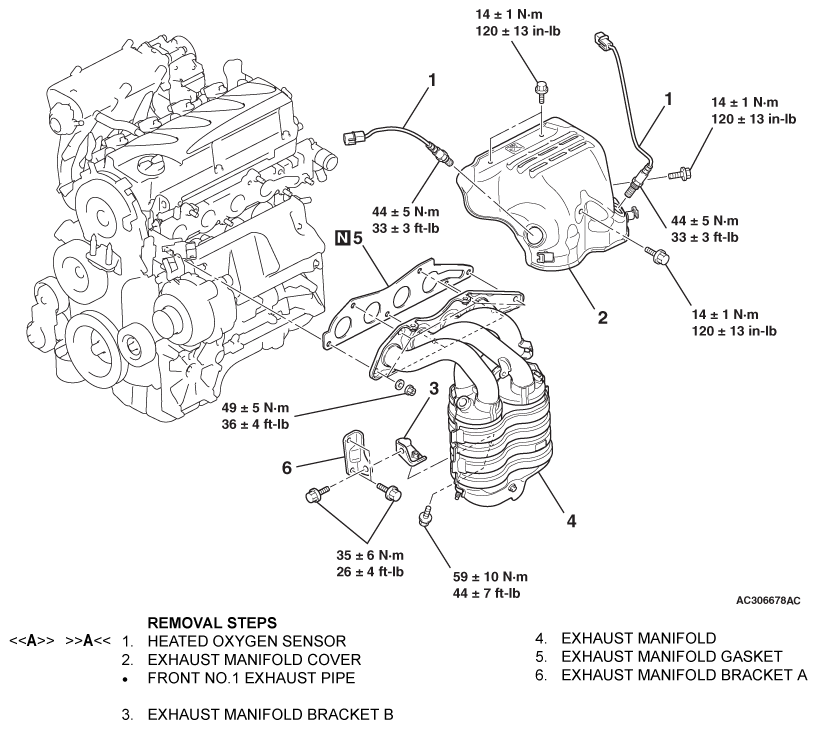

Fig 1: Exploded View Of Exhaust Manifold (2.4L Engine) With Torque Specifications
G06717542Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
