OEM Circuit Diagrams: Stoplight

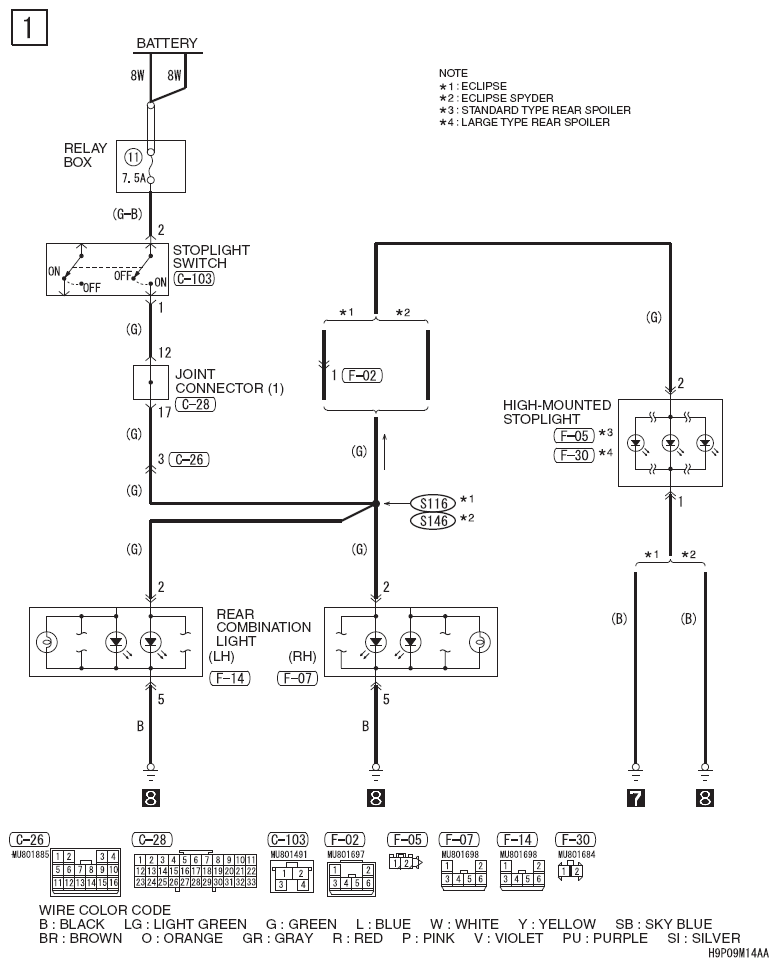

Fig 1: Stoplight Circuit Diagram

G07057517

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
