Remote Controlled Mirror
Remote Controlled Mirror

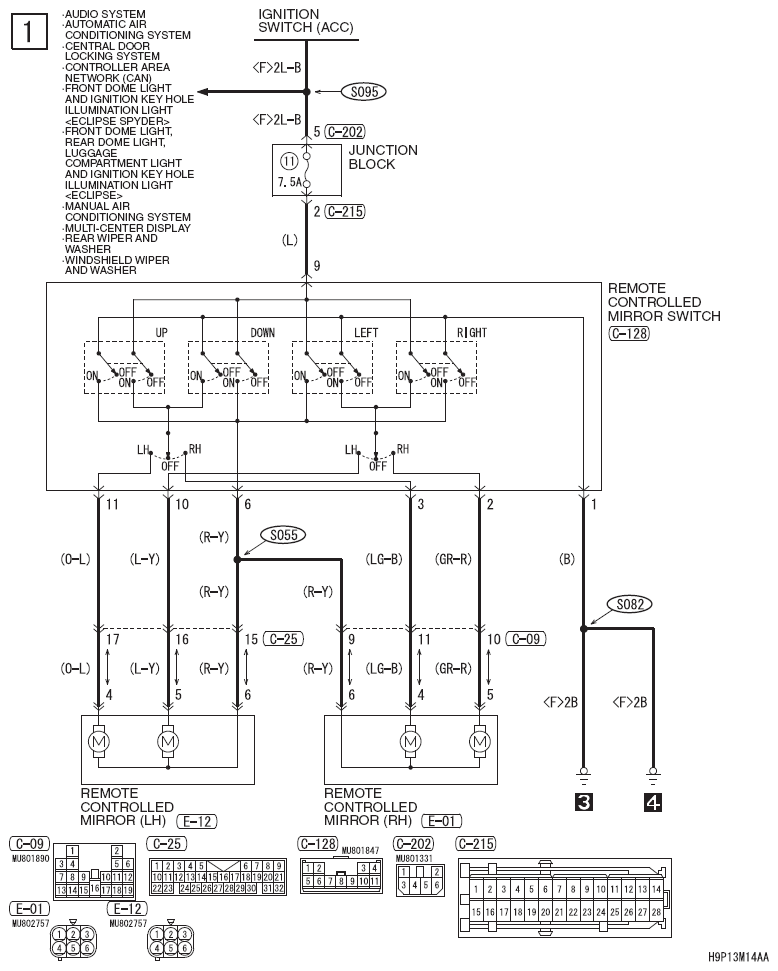

Fig 1: Remote Controlled Mirror Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
