Rear View Camera

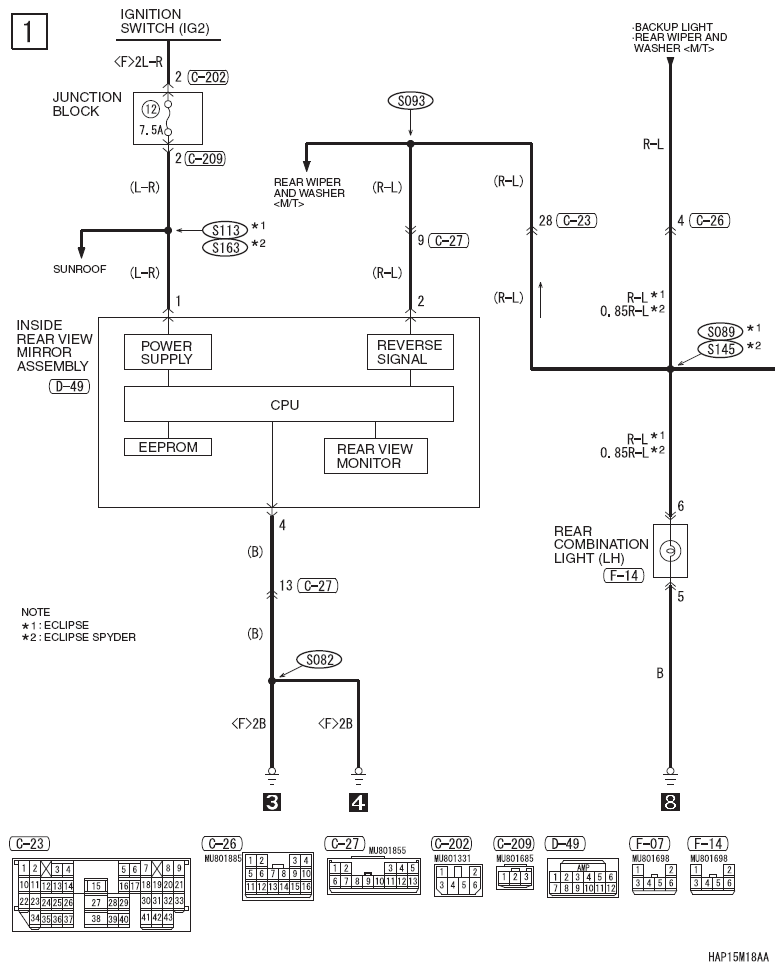

Fig 1: Rear View Camera Circuit Diagram (1 Of 2)
G07057823Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

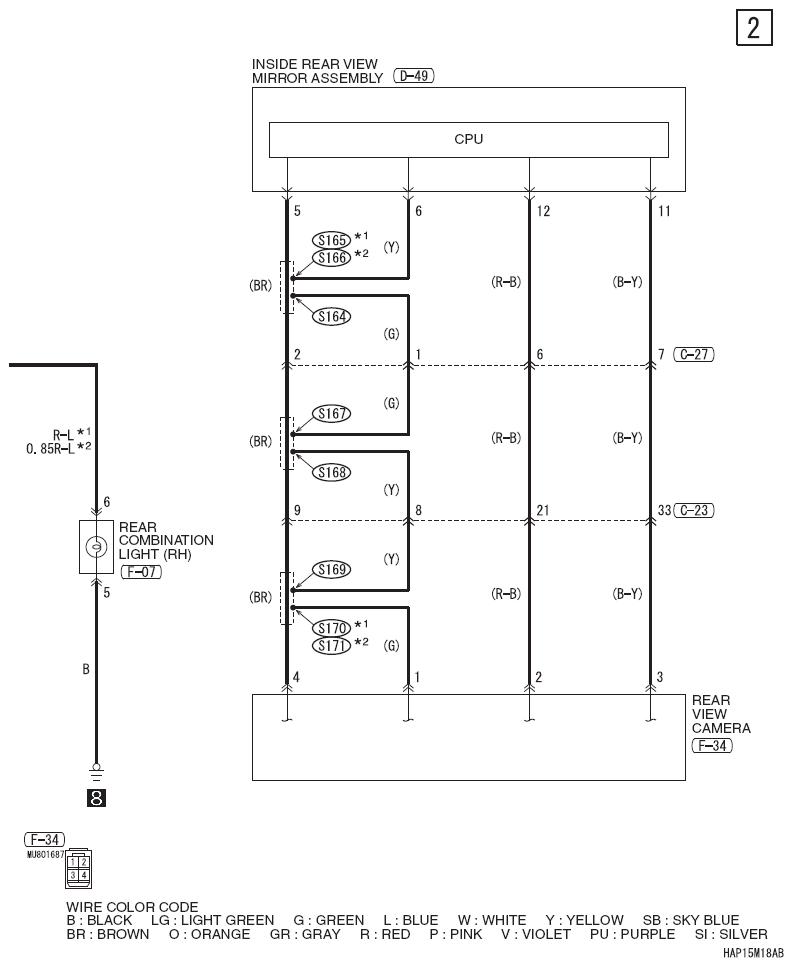

Fig 2: Rear View Camera Circuit Diagram (2 Of 2)
G07057824Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
