Junction Block
Junction Block

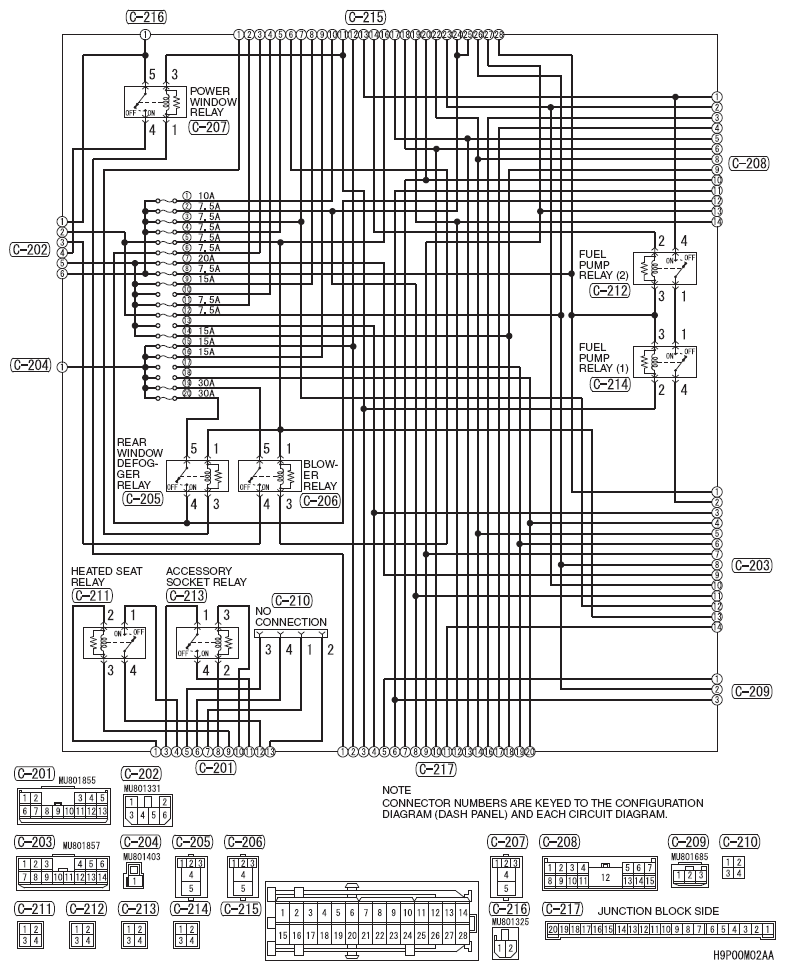

Fig 1: Junction Block Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

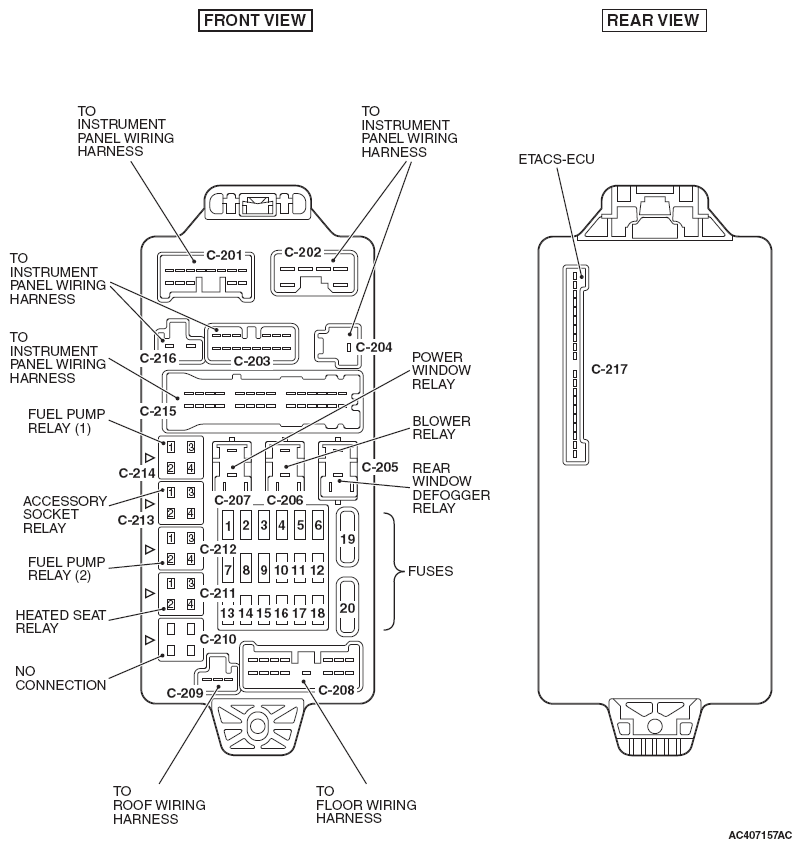

Fig 2: Identifying Junction Block
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
