Headlight Leveling System

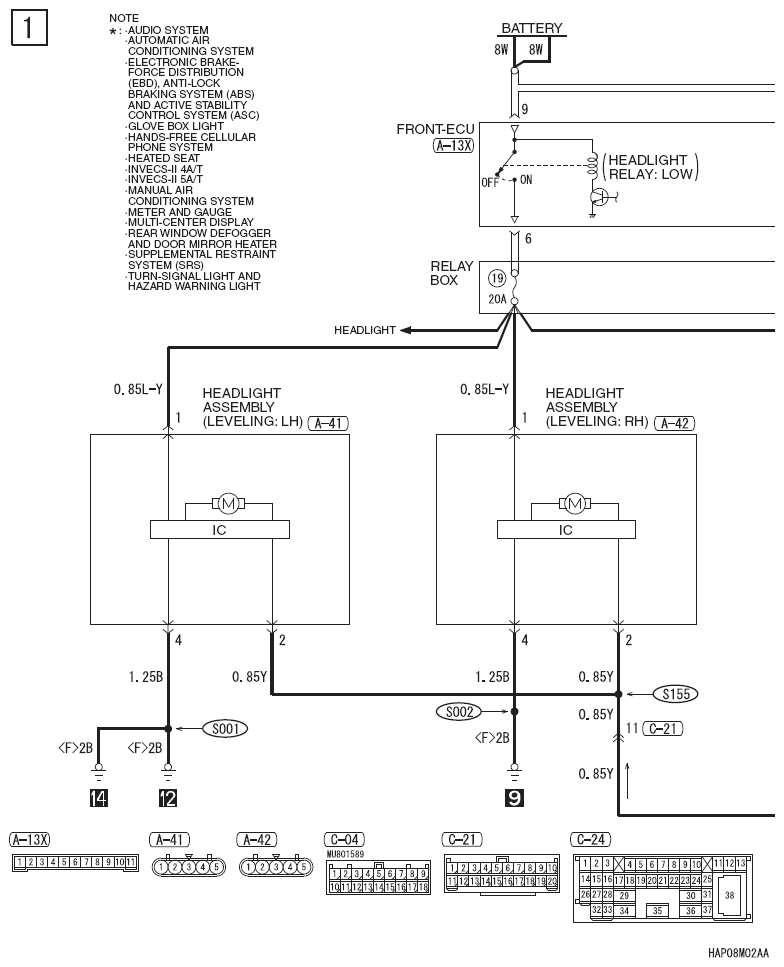

Fig 1: Headlight Leveling System Circuit Diagram (1 Of 2)
G07057455Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

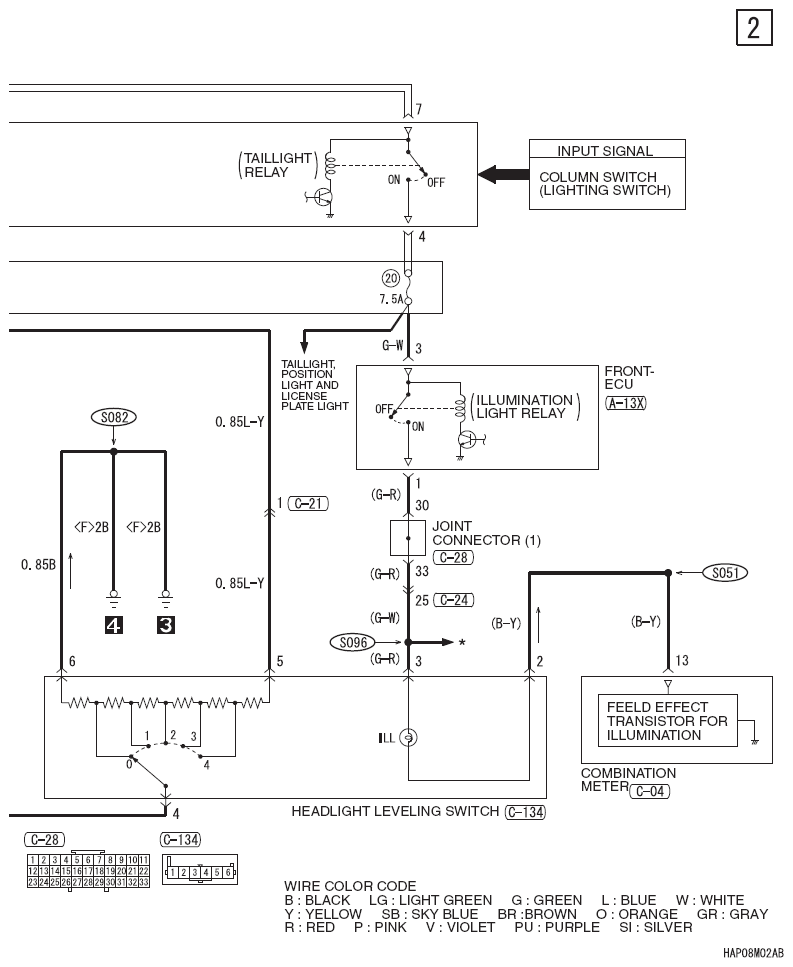

Fig 2: Headlight Leveling System Circuit Diagram (2 Of 2)
G07057456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
