Charging System

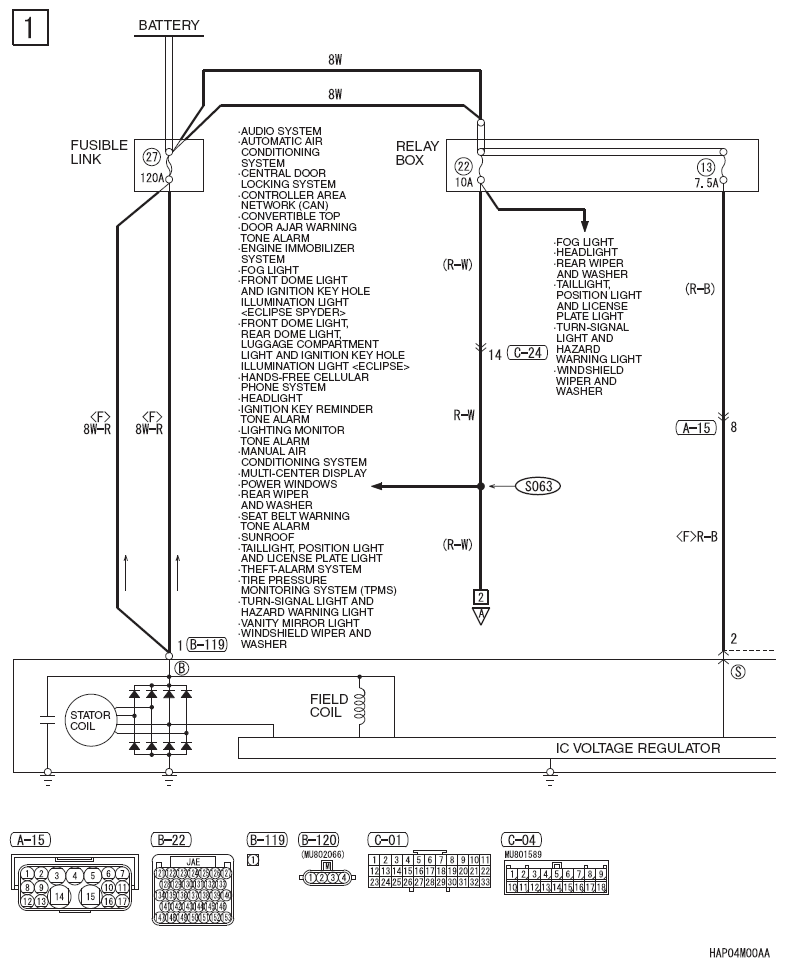

Fig 1: Charging System Circuit Diagram (1 Of 2)
G07057369Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

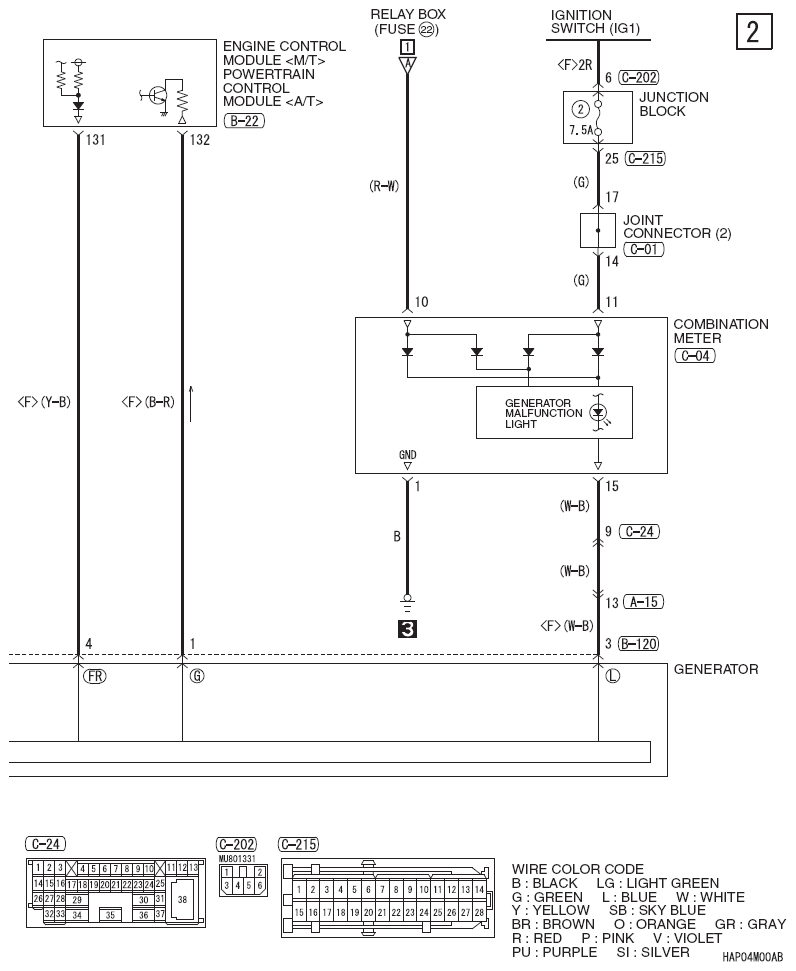

Fig 2: Charging System Circuit Diagram (2 Of 2)
G07057370Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
