Auto-Cruise Control System <2.4L Engine-M/T>

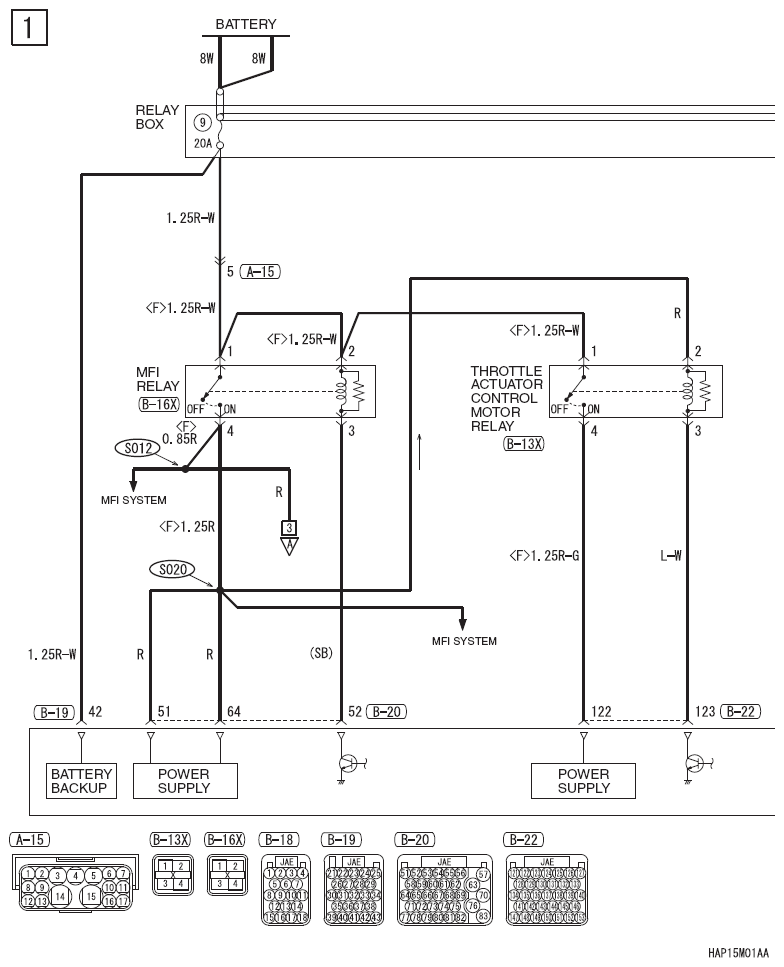

Fig 1: Auto-Cruise Control System - 2.4L Engine-M/T Circuit Diagram (1 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

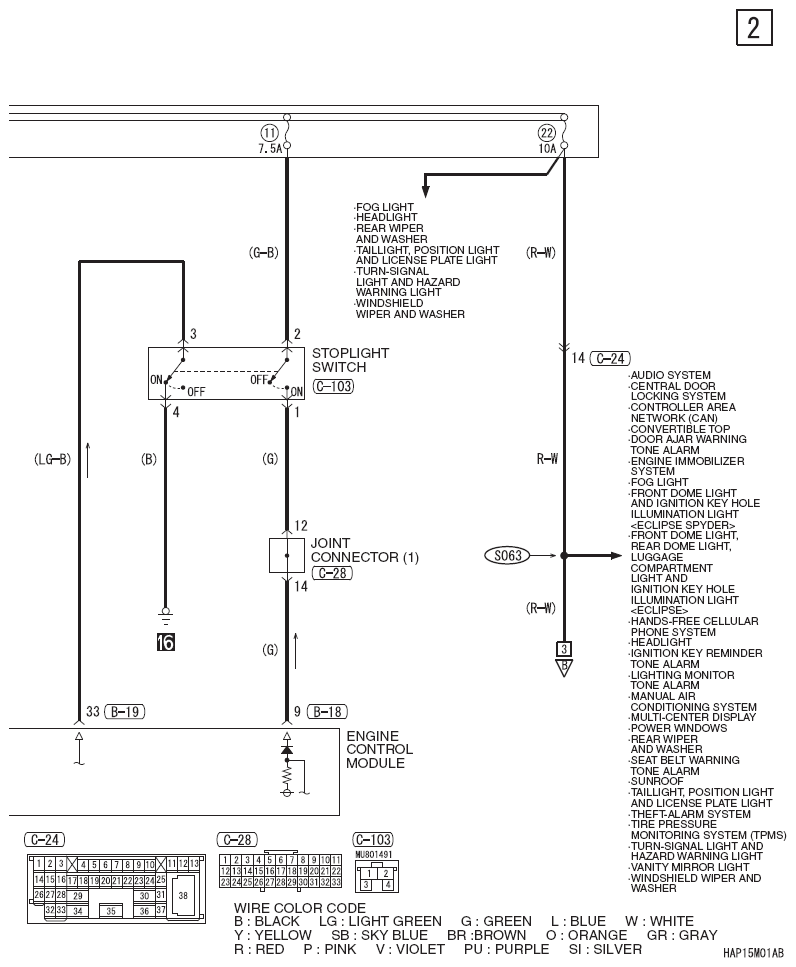

Fig 2: Auto-Cruise Control System - 2.4L Engine-M/T Circuit Diagram (2 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

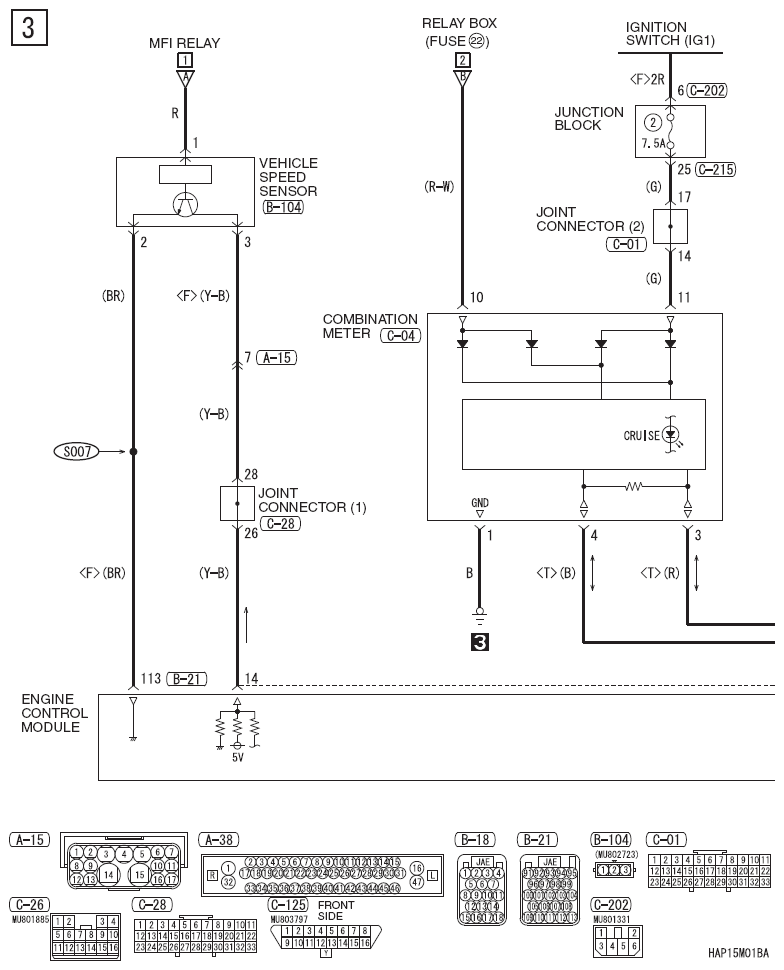

Fig 3: Auto-Cruise Control System - 2.4L Engine-M/T Circuit Diagram (3 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

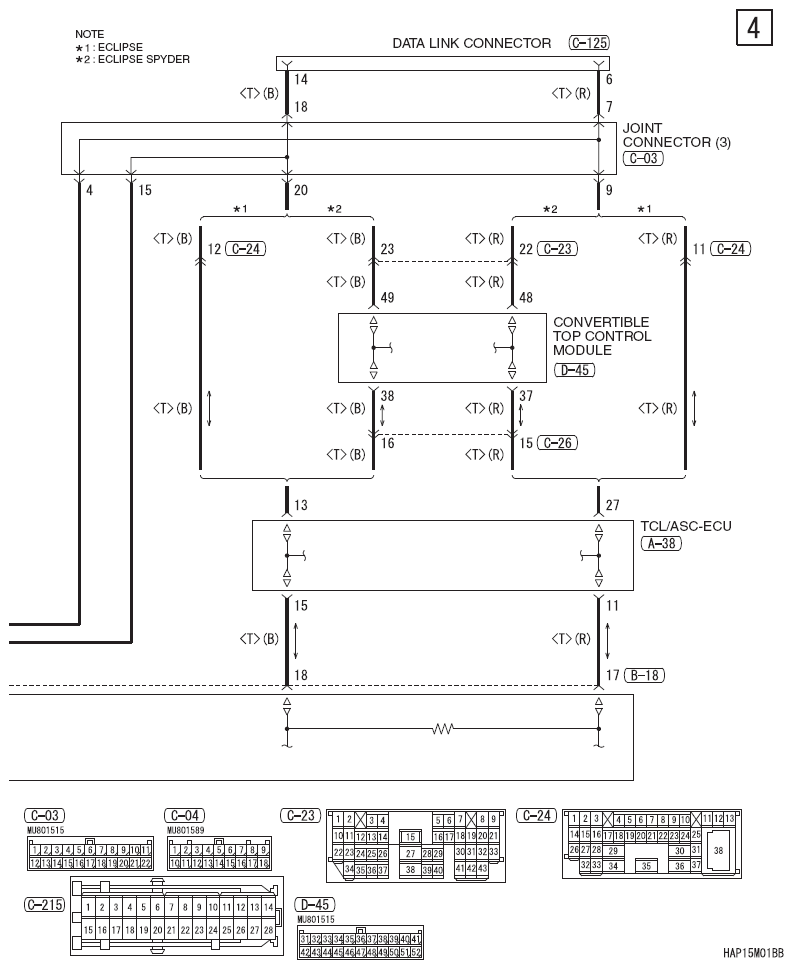

Fig 4: Auto-Cruise Control System - 2.4L Engine-M/T Circuit Diagram (4 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

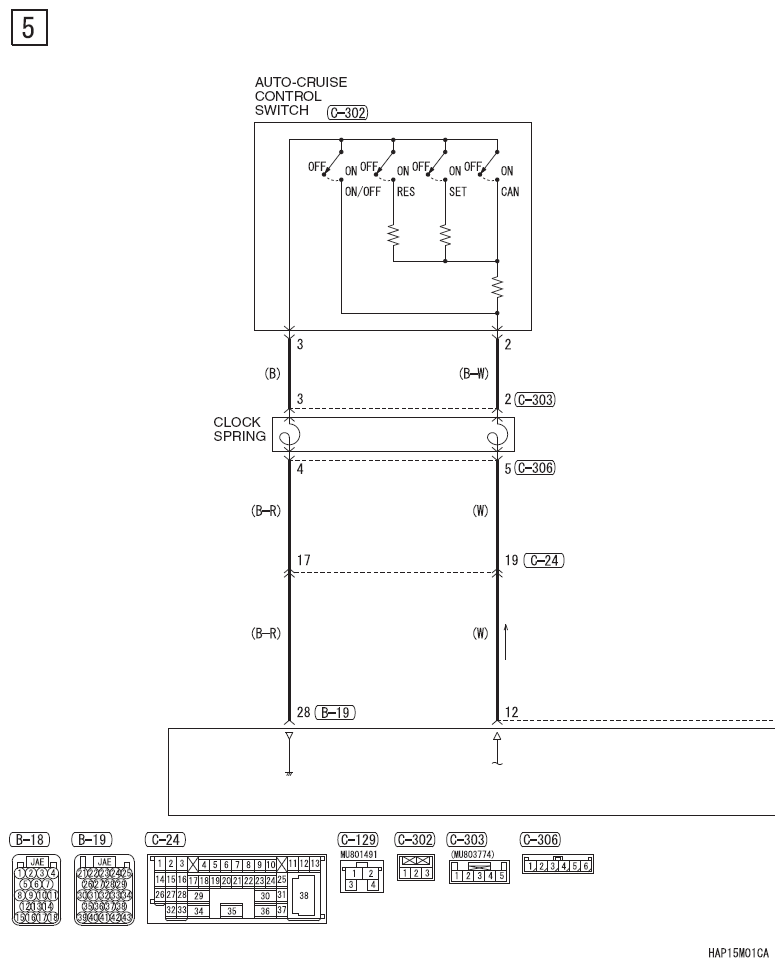

Fig 5: Auto-Cruise Control System - 2.4L Engine-M/T Circuit Diagram (5 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

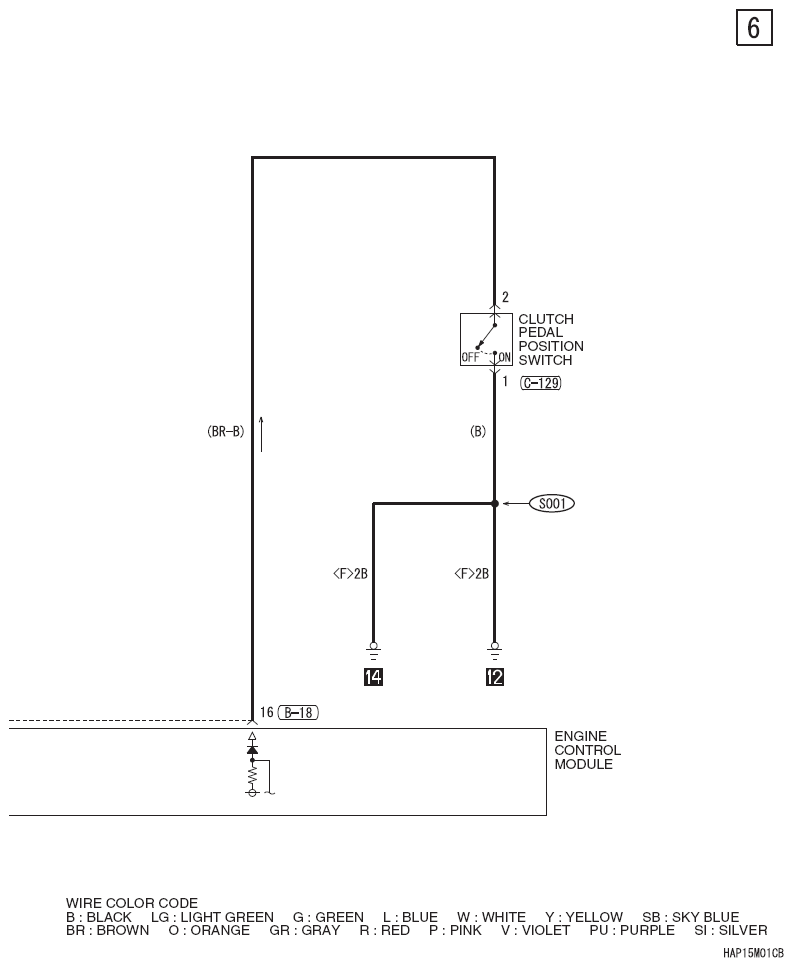

Fig 6: Auto-Cruise Control System - 2.4L Engine-M/T Circuit Diagram (6 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

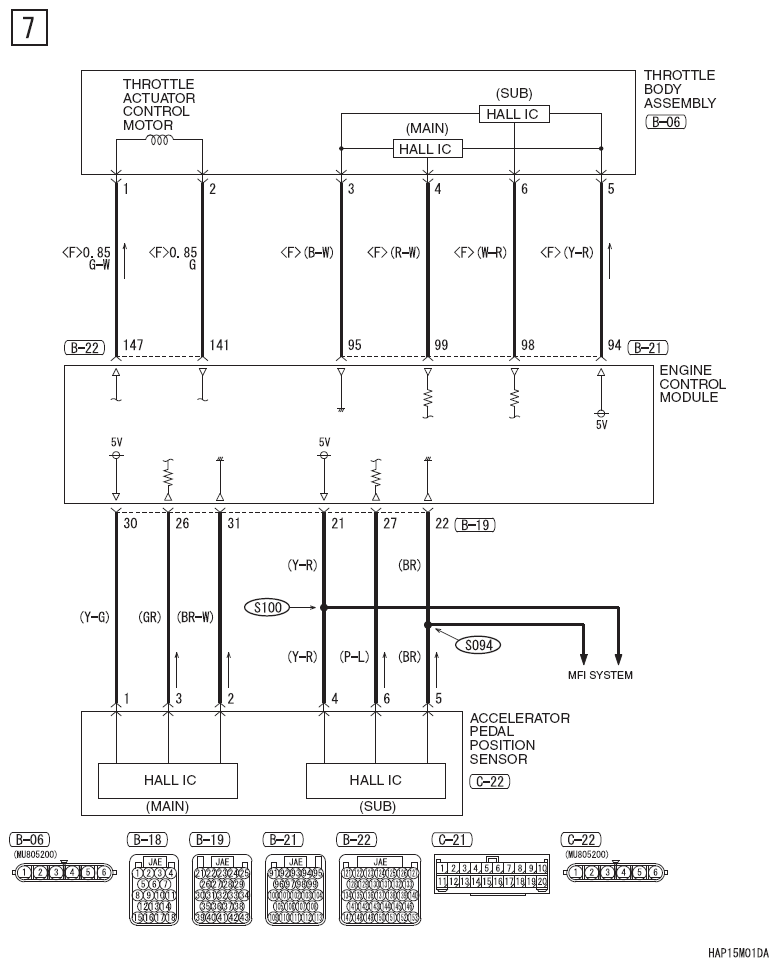

Fig 7: Auto-Cruise Control System - 2.4L Engine-M/T Circuit Diagram (7 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

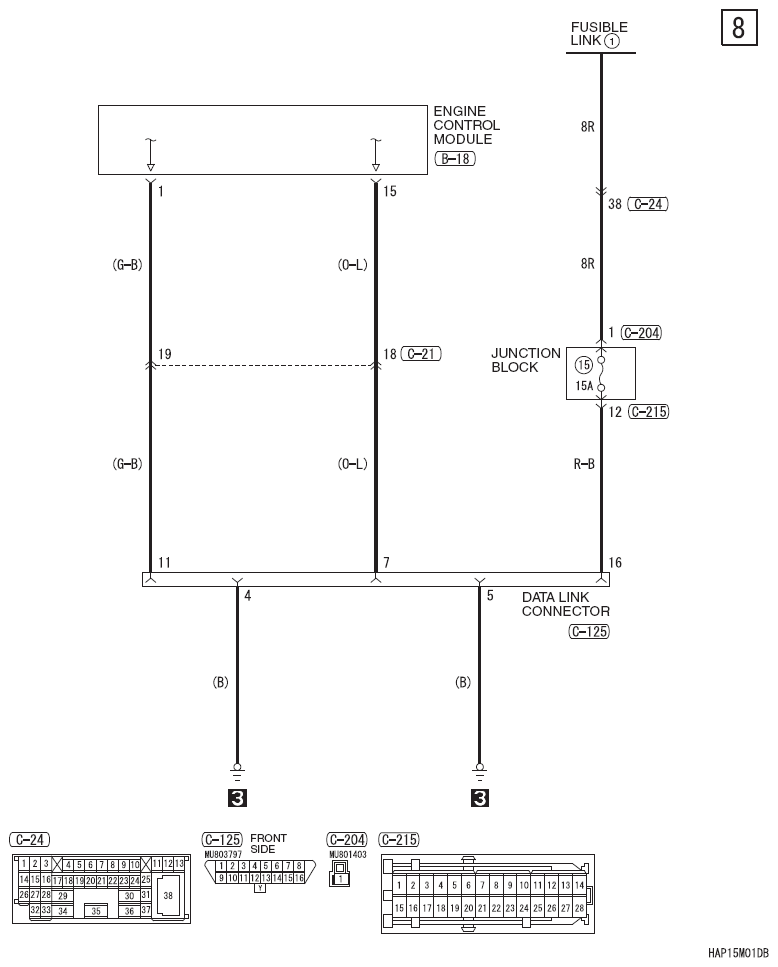

Fig 8: Auto-Cruise Control System - 2.4L Engine-M/T Circuit Diagram (8 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
