Removal And Installation <3.8L Engine>
Removal And Installation <3.8L Engine>

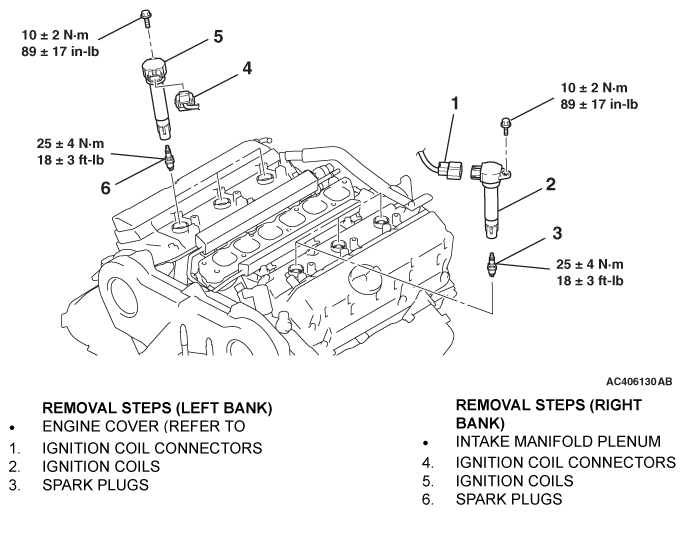

Fig 1: Removal/Installation Of Ignition Coil With Torque Specifications (3.8L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
