Removal And Installation: Notes

CAUTION:
  • Be careful not to strike the pole piece at the tip of the rear wheel speed sensor with tools during servicing work.
  • The rear hub assembly should not be dismantled.

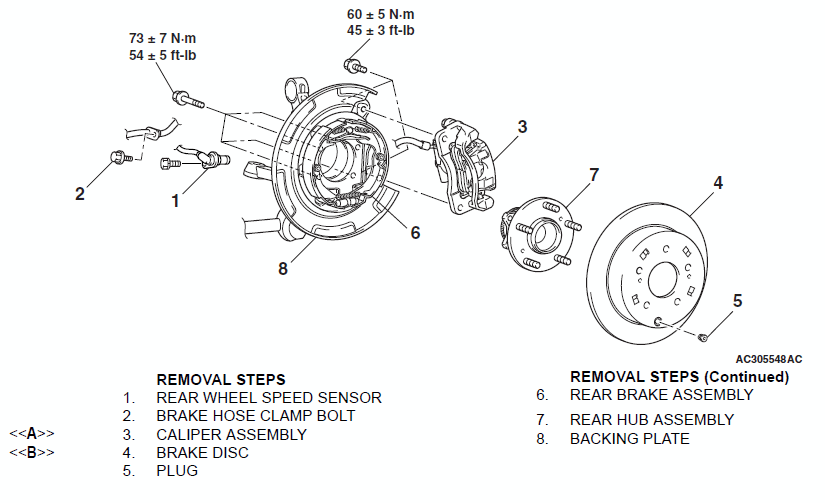

    Fig 1: Rear Axle Hub Assembly Replacement Components With Torque Specifications
    G06692168Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
