Disassembly And Assembly: Notes

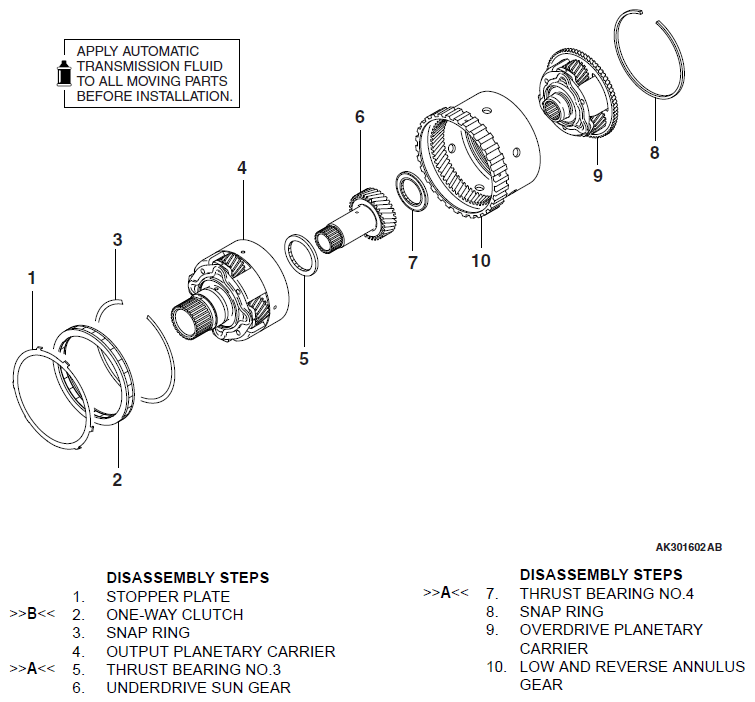

Fig 1: Disassembling View Of Planetary Gear

G06686038

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
