Power Window Timer Function

WARNING: This page is about a different variant/trim than selected.

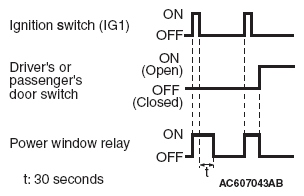

Fig 1: Power Window Timing Pattern
G06668589Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Even after the ignition is switched off, the ETACS-ECU keeps the power window relay activated for approximately 30 seconds, enabling raising or lowering of the power windows by using the power window switches. After approximately 30 seconds, the power window relay is deactivated.

During this timed operation, if the driver's or passenger's doors are opened, the power window relay is deactivated from that moment.
