OEM Component Locations - Lancer: Sensor

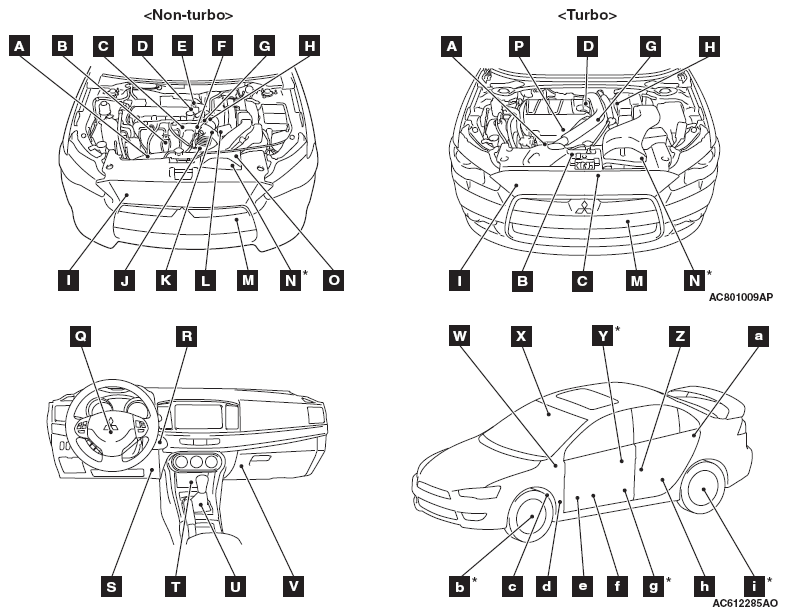

SENSOR SYMBOLS REFERENCE CHART
| Name | Symbol | Name | Symbol |
|---|---|---|---|
| A/C pressure sensor | I | Intake camshaft position sensor < Turbo > | P |

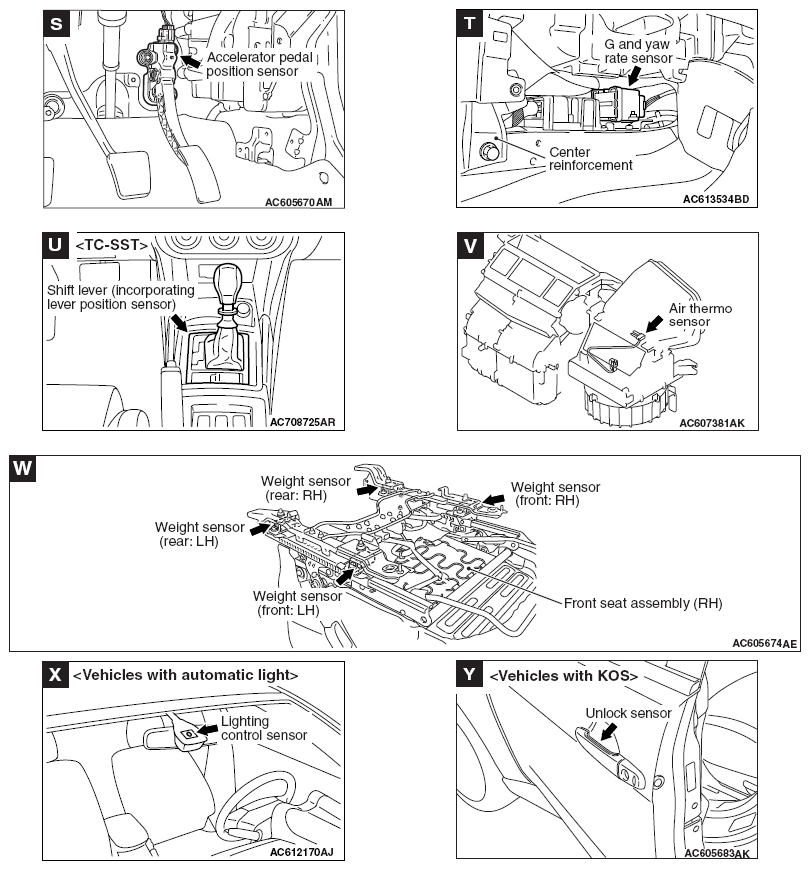

| Accelerator pedal position sensor | S | Interior temperature sensor < Vehicles with automatic air conditioning system > | R |

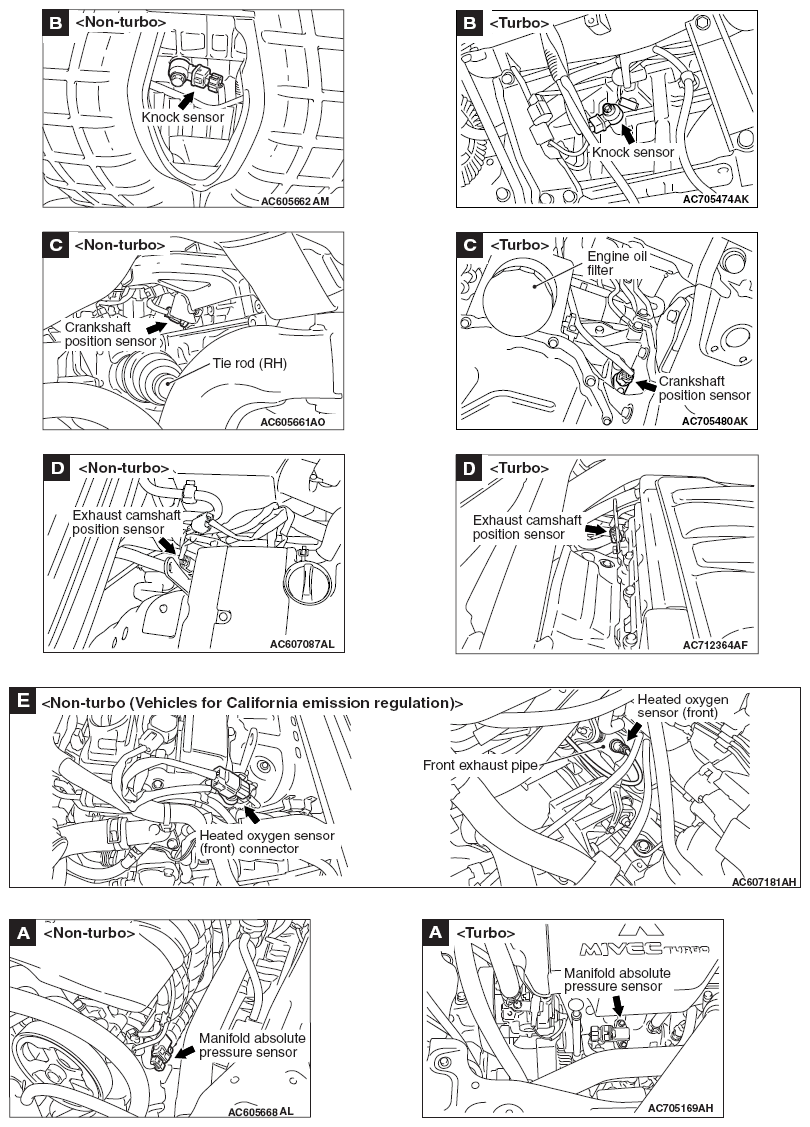

| Air thermo sensor | V | Knock sensor | B |
| Ambient air temperature sensor | M | Lighting control sensor < Vehicles with automatic light > | X |
| Crankshaft position sensor | C | Manifold absolute pressure sensor | A |
| Engine coolant temperature sensor | G | Mass airflow sensor | H |
| Exhaust camshaft position sensor | D | No.2 intake air temperature sensor < Turbo > | P |
| Front impact sensor | N | Pressure sensor < Turbo > | a |
| Front wheel speed sensor | b | Primary pulley speed sensor < CVT > | O |

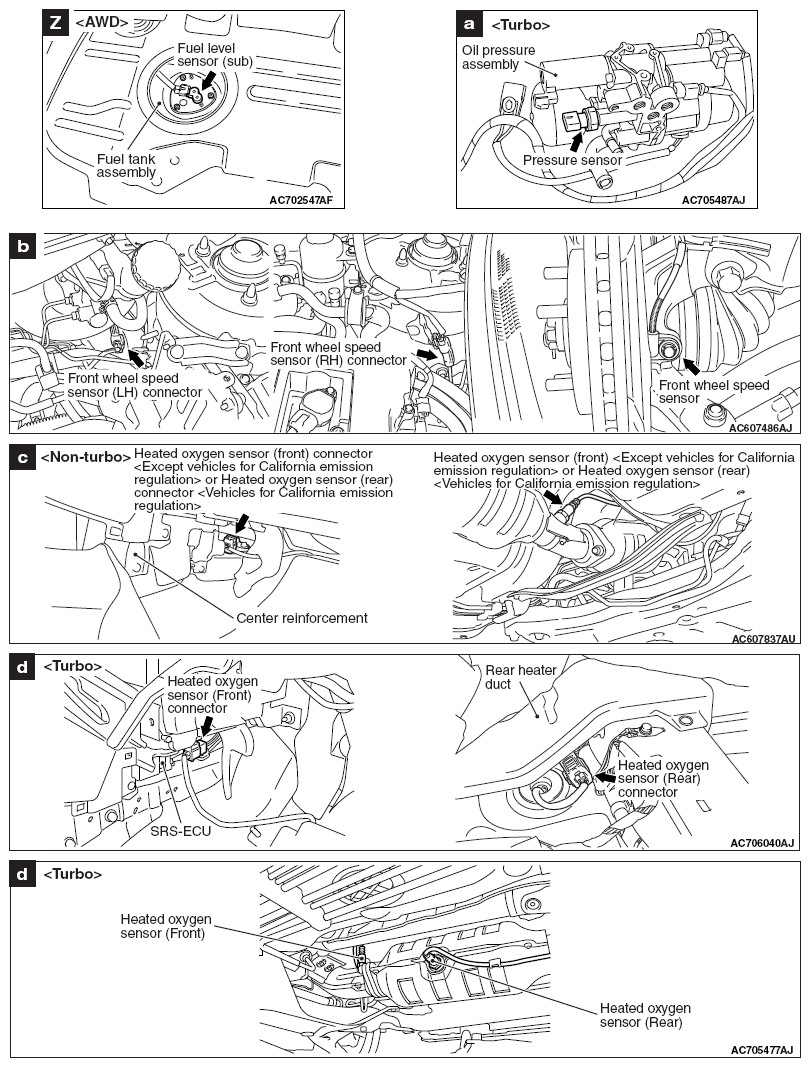

| Fuel level sensor (sub) < AWD > | Z | Shift lever (incorporating lever position sensor) < TC-SST > | U |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | h | Rear wheel speed sensor | i |
| Fuel tank differential pressure sensor | h | Seat slide sensor (LH) | f |

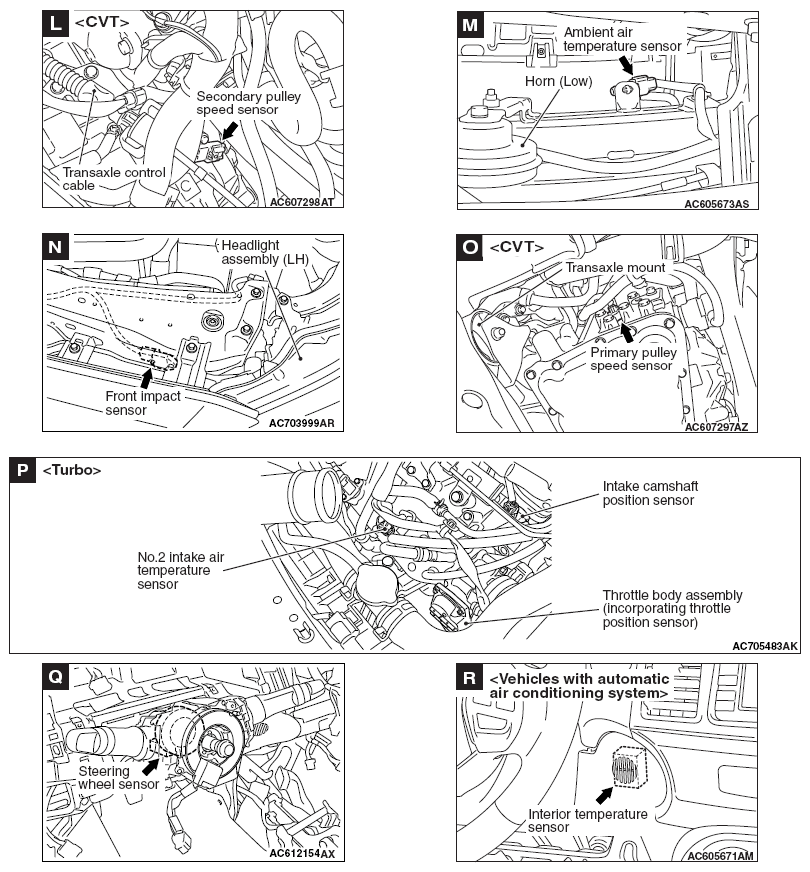

| G and yaw rate sensor | T | Secondary pulley speed sensor < CVT > | L |

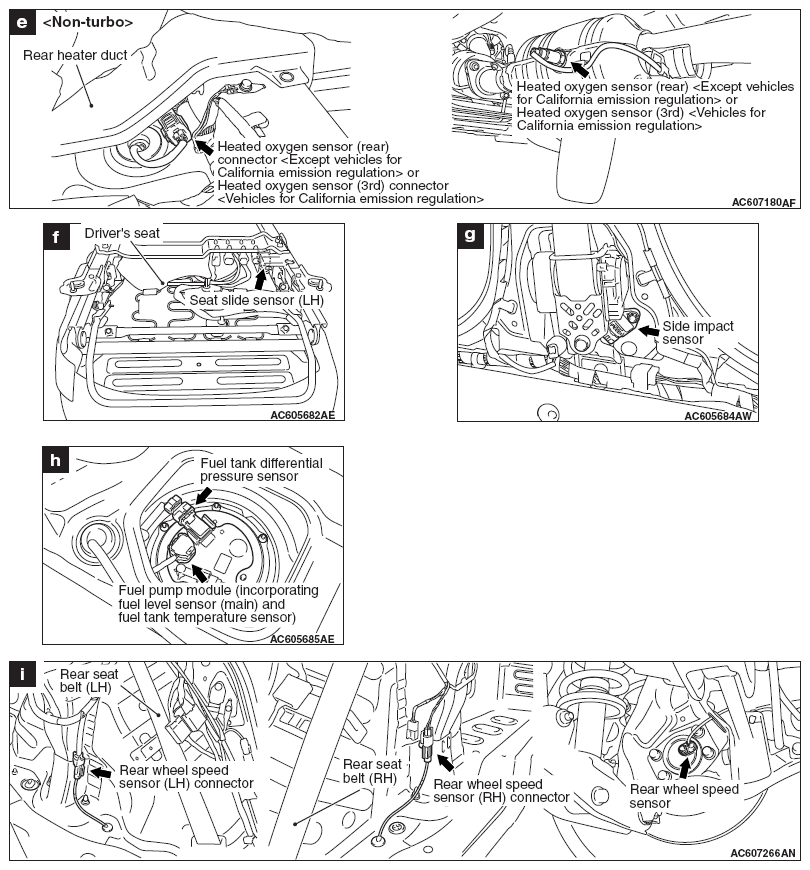

| Heated oxygen sensor (3rd) < Non-turbo (Vehicles for California emission regulation) > | e | Side impact sensor | g |
| Heated oxygen sensor (front) < Turbo > | d | Steering wheel sensor | Q |
| Heated oxygen sensor (front) < Non-turbo (Except vehicles for California emission regulation) > | c | Throttle body assembly (incorporating throttle position sensor) < Non-turbo > | J |
| Heated oxygen sensor (front) < Non-turbo (Vehicles for California emission regulation) > | E | Throttle body assembly (incorporating throttle position sensor) < Turbo > | P |
| Heated oxygen sensor (rear) < Non-turbo (Except vehicles for California emission regulation) > | e | Unlock sensor < Vehicles with KOS > | Y |
| Heated oxygen sensor (rear) < Turbo > | d | Vehicle speed sensor < M/T > | K |
| Heated oxygen sensor (rear) < Non-turbo (Vehicles for California emission regulation) > | c | Weight sensor | W |

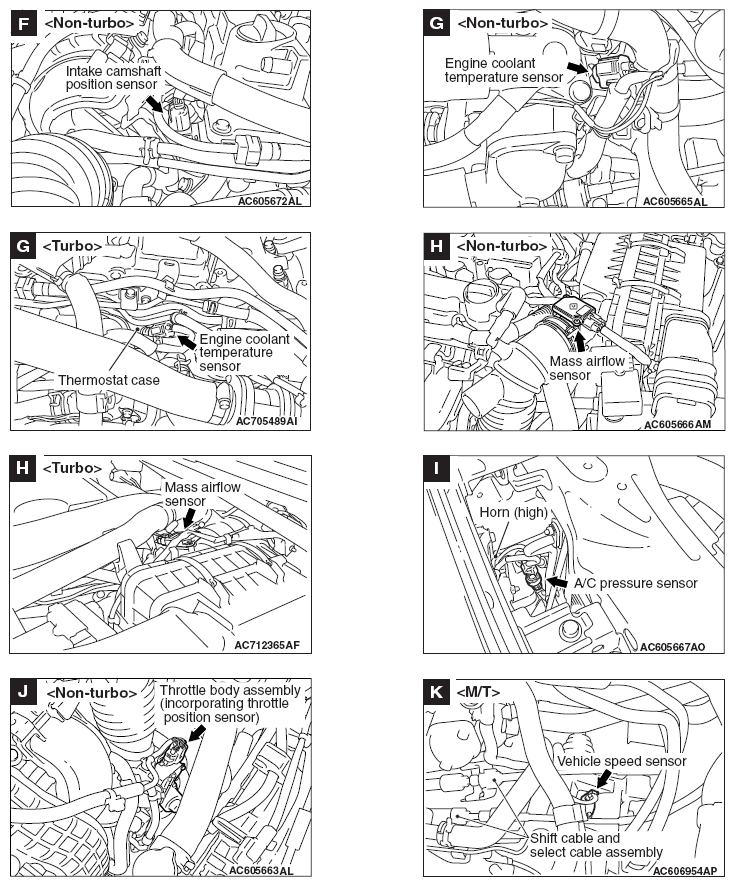

| Intake camshaft position sensor < Non-turbo > | F |
NOTE:
The * symbols indicate equipped at the right side.
