OEM Component Locations - Lancer: Relay

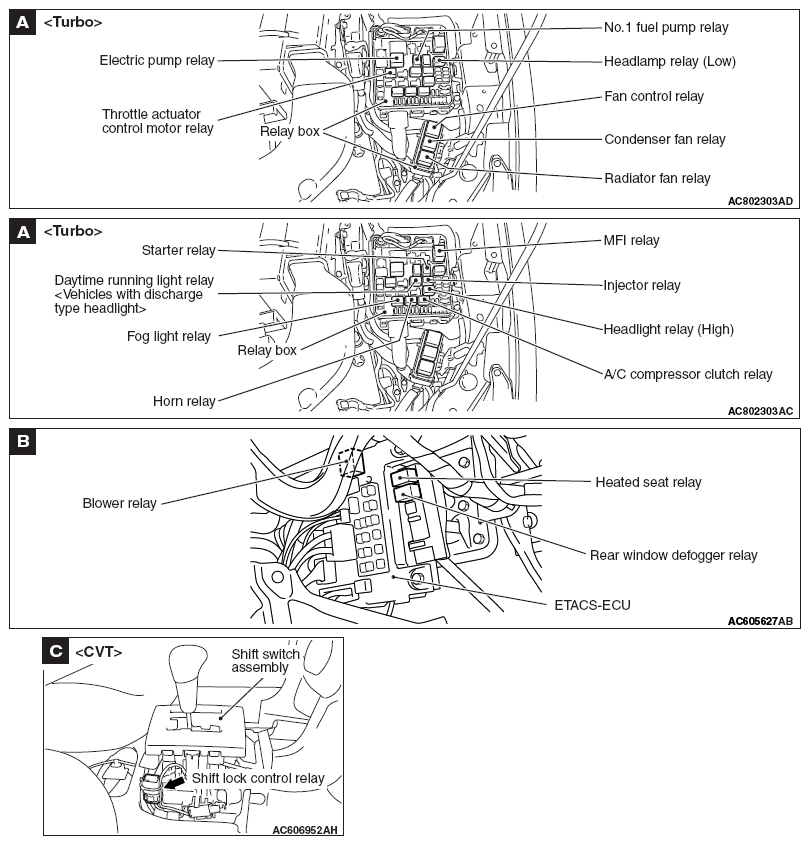

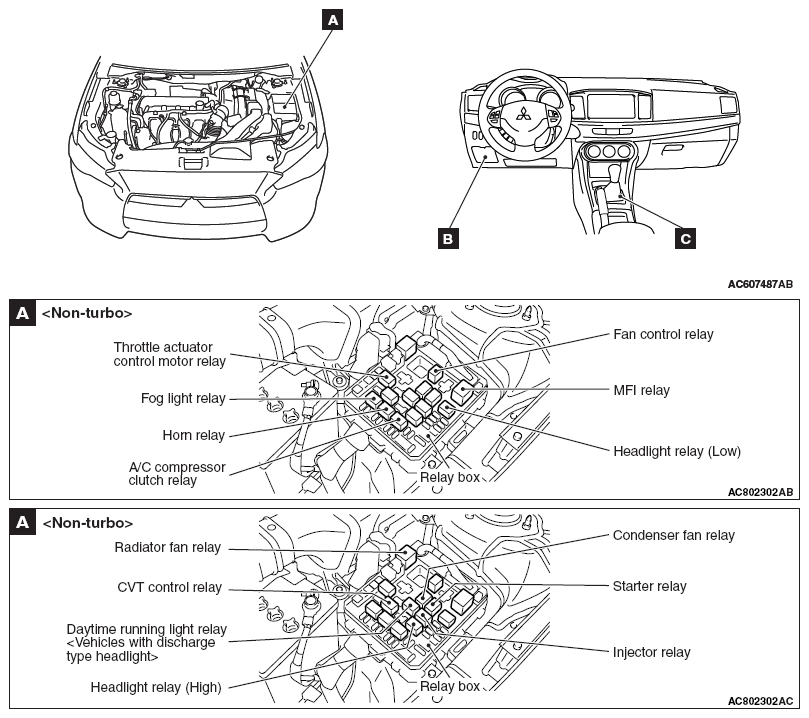

RELAY SYMBOLS REFERENCE CHART
| Name | Symbol | Name | Symbol |
|---|---|---|---|
| A/C compressor clutch relay | A | Heated seat relay | B |
| Blower relay | B | Horn relay | A |
| Condenser fan relay | A | Injector relay | A |
| CVT control relay | A | MFI relay | A |
| Daytime running light relay < Vehicles with discharge type headlight > | A | No.1 fuel pump relay < Turbo > | A |
| Electric pump relay < Turbo > | A | Radiator fan relay | A |
| Fan control relay | A | Rear window defogger relay | B |
| Fog light relay | A | Shift lock control relay < CVT > | C |
| Headlight relay (High) | A | Starter relay | A |
| Headlight relay (Low) | A | Throttle actuator control motor relay | A |
