Removal And Installation: Notes

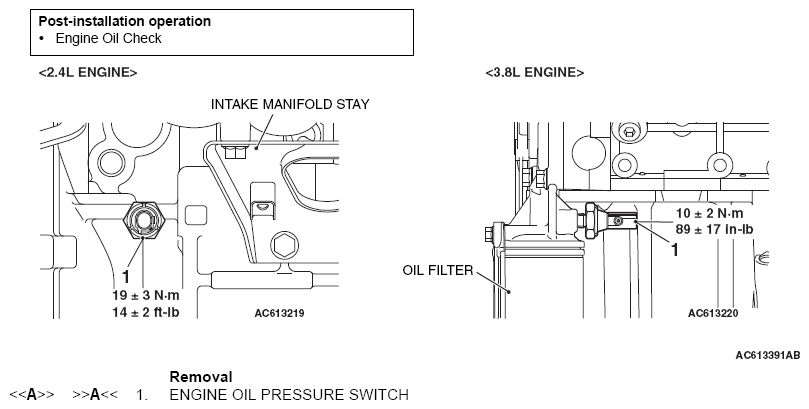

Fig 1: Engine Oil Pressure Switch Replacement Components With Torque Specifications
G06717512Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
