Removal And Installation < Liftgate Lower>: Notes

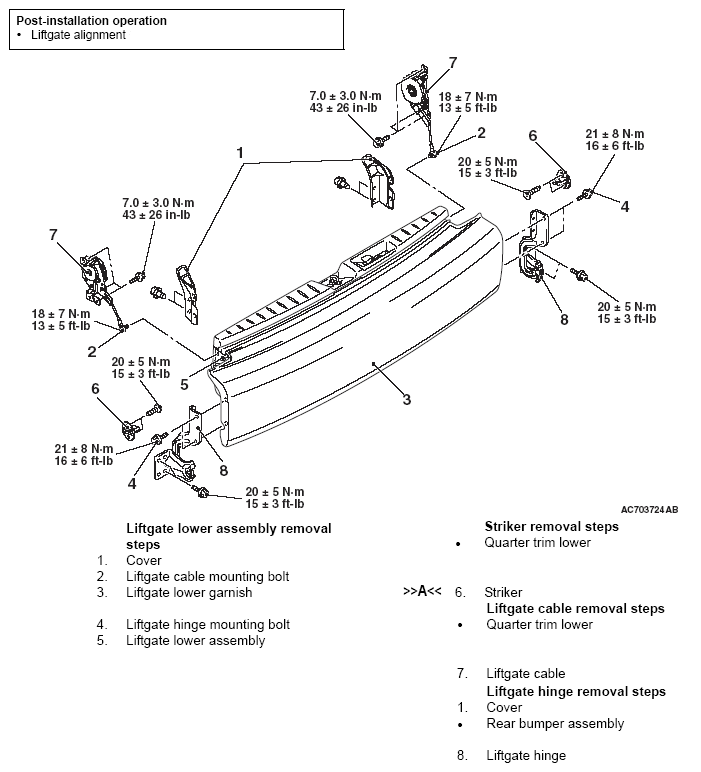

Fig 1: Liftgate Lower Replacement Components With Torque Specifications

G05433024

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
