Component Location

For fuses and fusible link locations, refer to illustrations below.

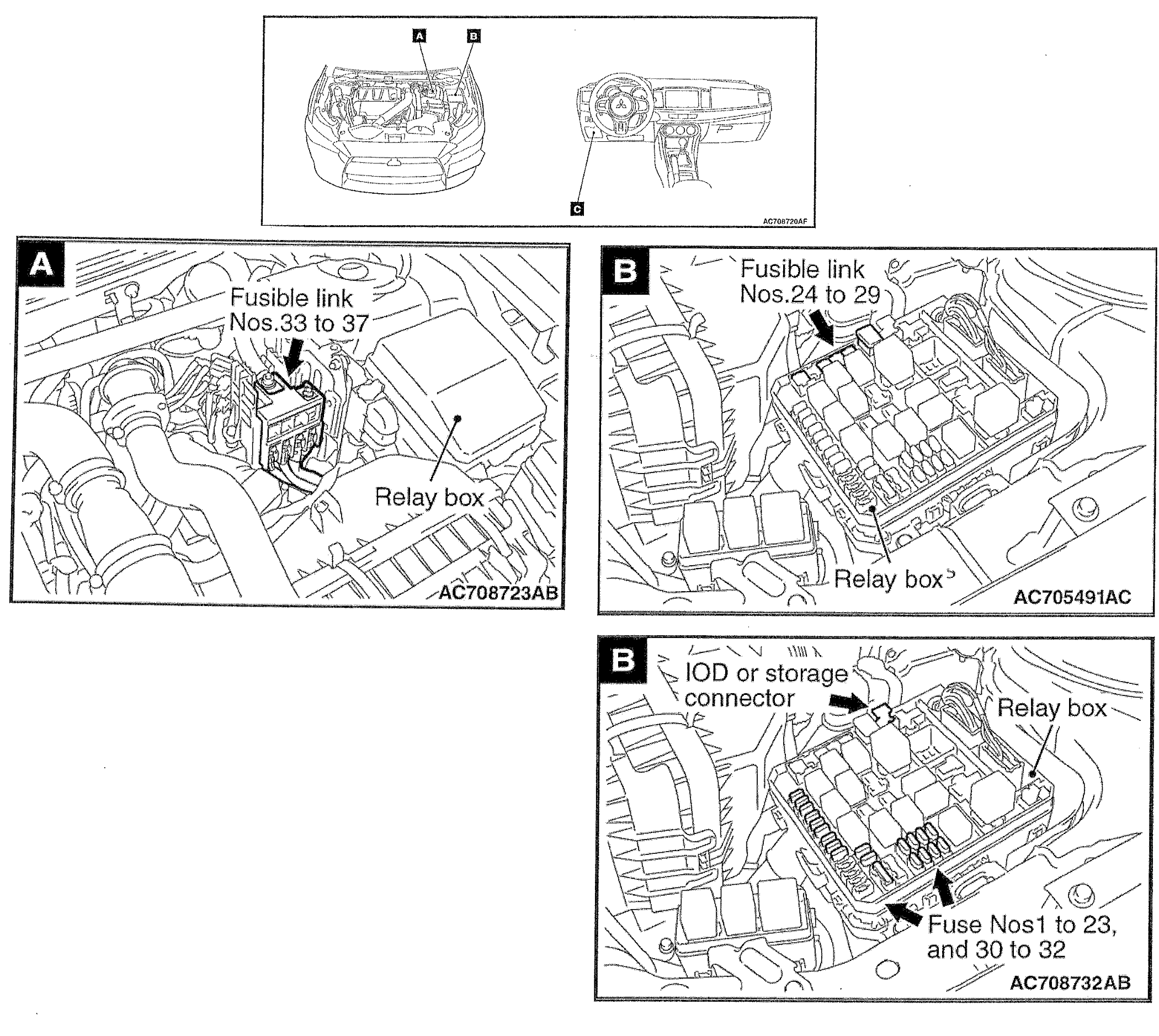

Fig 1: Locating Fuses & Fusible Links - Engine Compartment

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

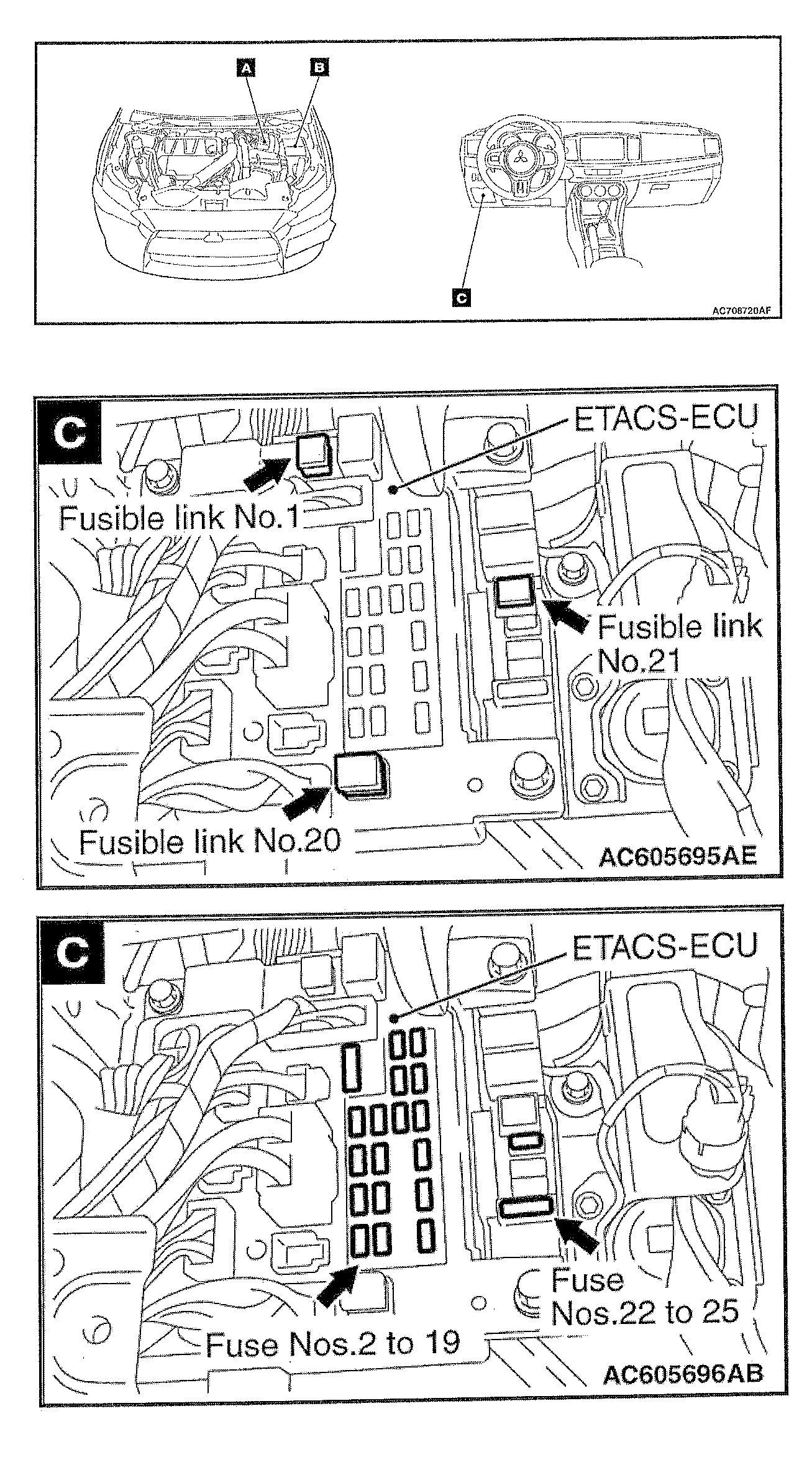

Fig 2: Locating Fuse Junction Box & ETACS - ECU - Passenger Compartment

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NAME	SYMBOL
Fusible link Nos. 33 to 37 (Connected directly to battery positive terminal)	A
Fuse Nos. 1 to 23 and No. 30 to 32 (Engine compartment relay box)	B
Fusible link Nos. 24 to 29 (Engine compartment relay box)	B
IOD or storage connector	B
Fusible link Nos. 1, 20 and 21 (Passengers compartment relay box / ETACS-ECU)	C
Fuse Nos. 2 to 19 and Nos. 22 to 25 (Passengers compartment relay box / ETACS-ECU)	C
