Removal And Installation: Notes

Pre-removal and post-installation operation

• Engine Room Under Cover Front Removal and Installation (Refer to UNDER COVER ).
• Intake Manifold Stay Removal and Installation (Refer to INTAKE MANIFOLD ).
• Vacuum Hose Removal and Installation (Refer to MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ).
• Emission Vacuum Hose Removal and Installation (Refer to INTAKE MANIFOLD ).

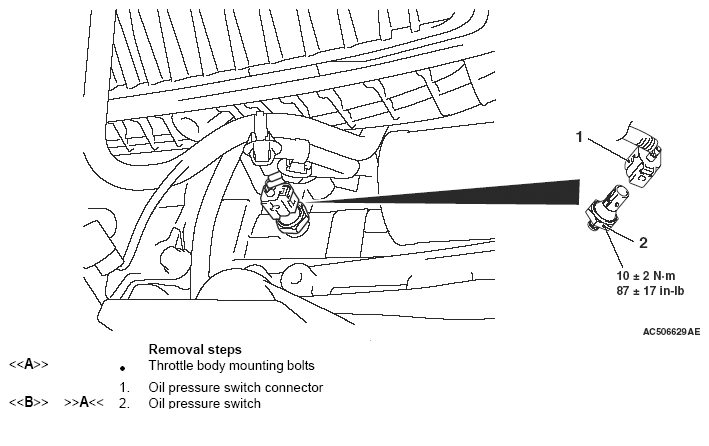

  Fig 1: Oil Pressure Switch And Oil Pressure Switch Connector With Torque Specifications

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992118: Oil Pressure Switch Wrench
