Removal And Installation: Notes
INTAKE MANIFOLD COMPONENTS REMOVAL STEPS
Pre-removal operation
Post-installation operation
Engine Coolant Draining (Refer to
ENGINE COOLANT REPLACEMENT
).
Engine Upper Cover Removal (Refer to
CAMSHAFT
).
Drive Belt Removal (Refer to
CRANKSHAFT PULLEY
).
Air Cleaner Assembly and Air Cleaner Intake Hose Removal (Refer to
AIR CLEANER
).
Throttle Body Removal (Refer to
THROTTLE BODY
).
Fuel Injector Removal (Refer to
INJECTOR
).
EGR Valve and EGR Valve Stay Removal (Refer to
EGR VALVE
). <Vehicles for California>
EGR Valve and EGR Valve Stay Installation (Refer to
EGR VALVE
). <Vehicles for California>
Fuel Injector Installation (Refer to
INJECTOR
).
Throttle Body Installation (Refer to
THROTTLE BODY
).
Air Cleaner Assembly and Air Cleaner Intake Hose Installation (Refer to
AIR CLEANER
).
Drive Belt Installation (Refer to
CRANKSHAFT PULLEY
).
Engine Upper Cover Installation (Refer to
CAMSHAFT
).
Engine Coolant Refilling (Refer to
ENGINE COOLANT REPLACEMENT
).

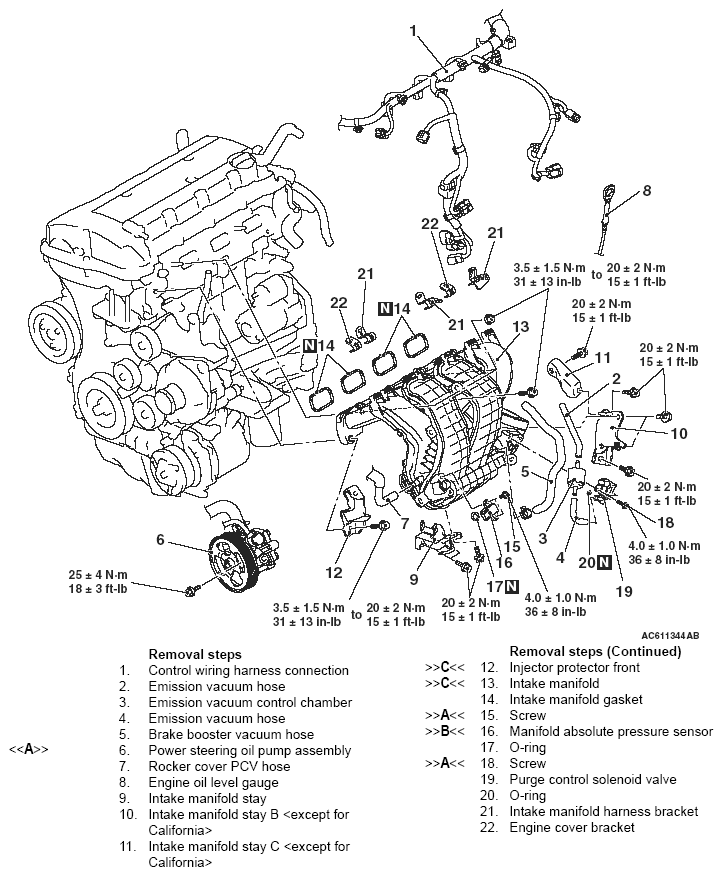

Fig 1: Intake Manifold Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
