Removal And Installation: Notes

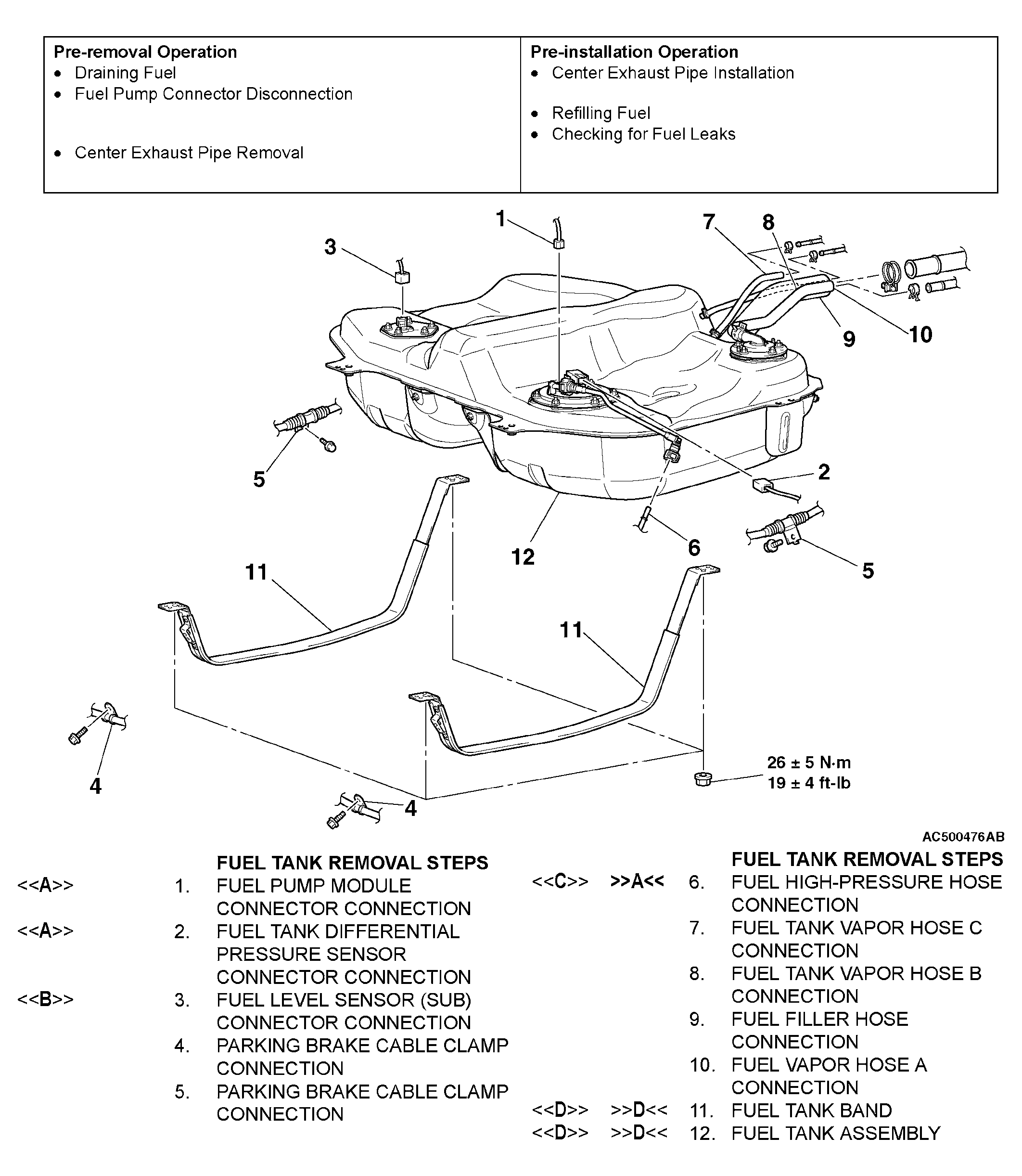

Fig 1: Fuel Tank Mounting Straps With Torque Specification
G04253786Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

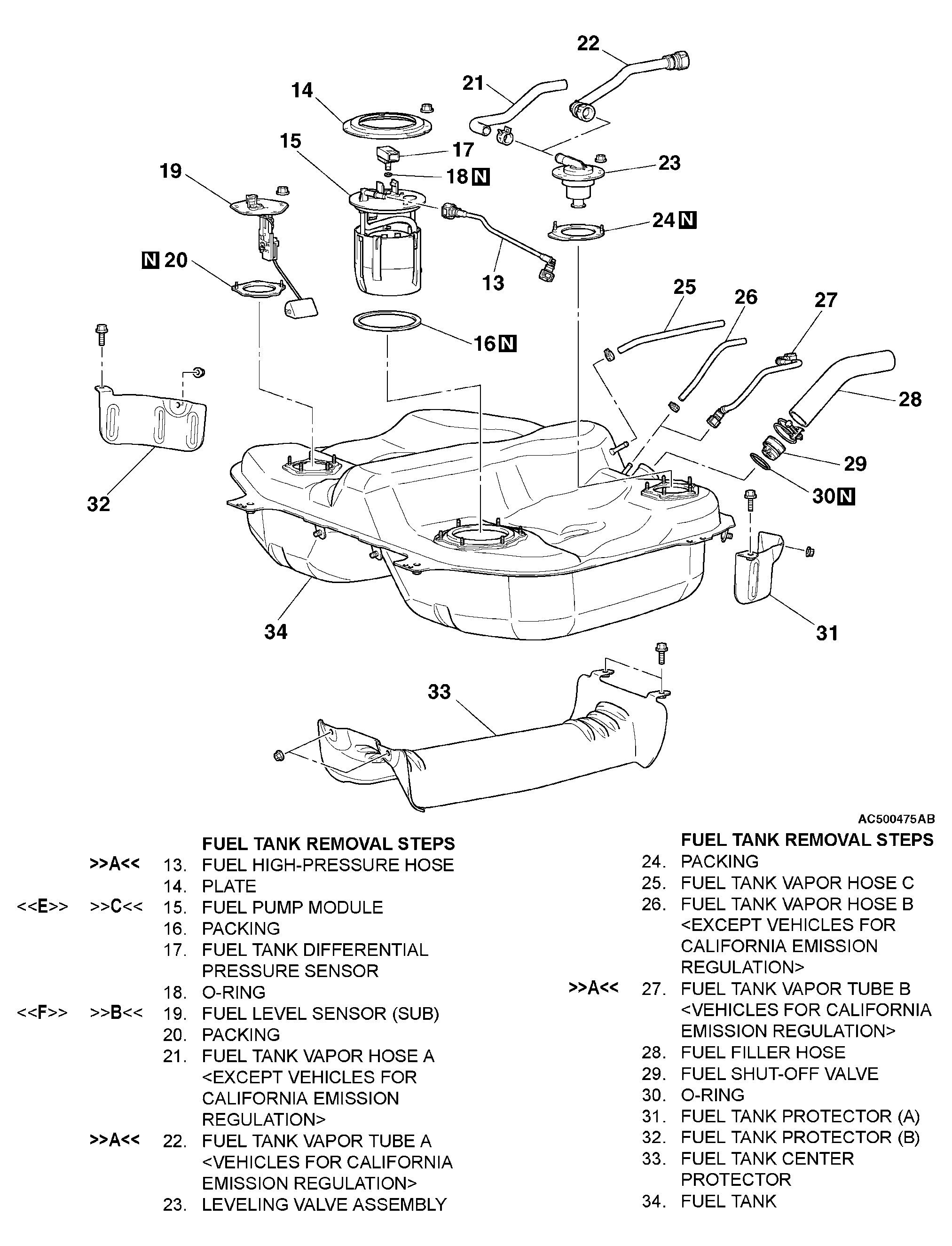

Fig 2: Fuel Tank Internal Components
G04253787Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

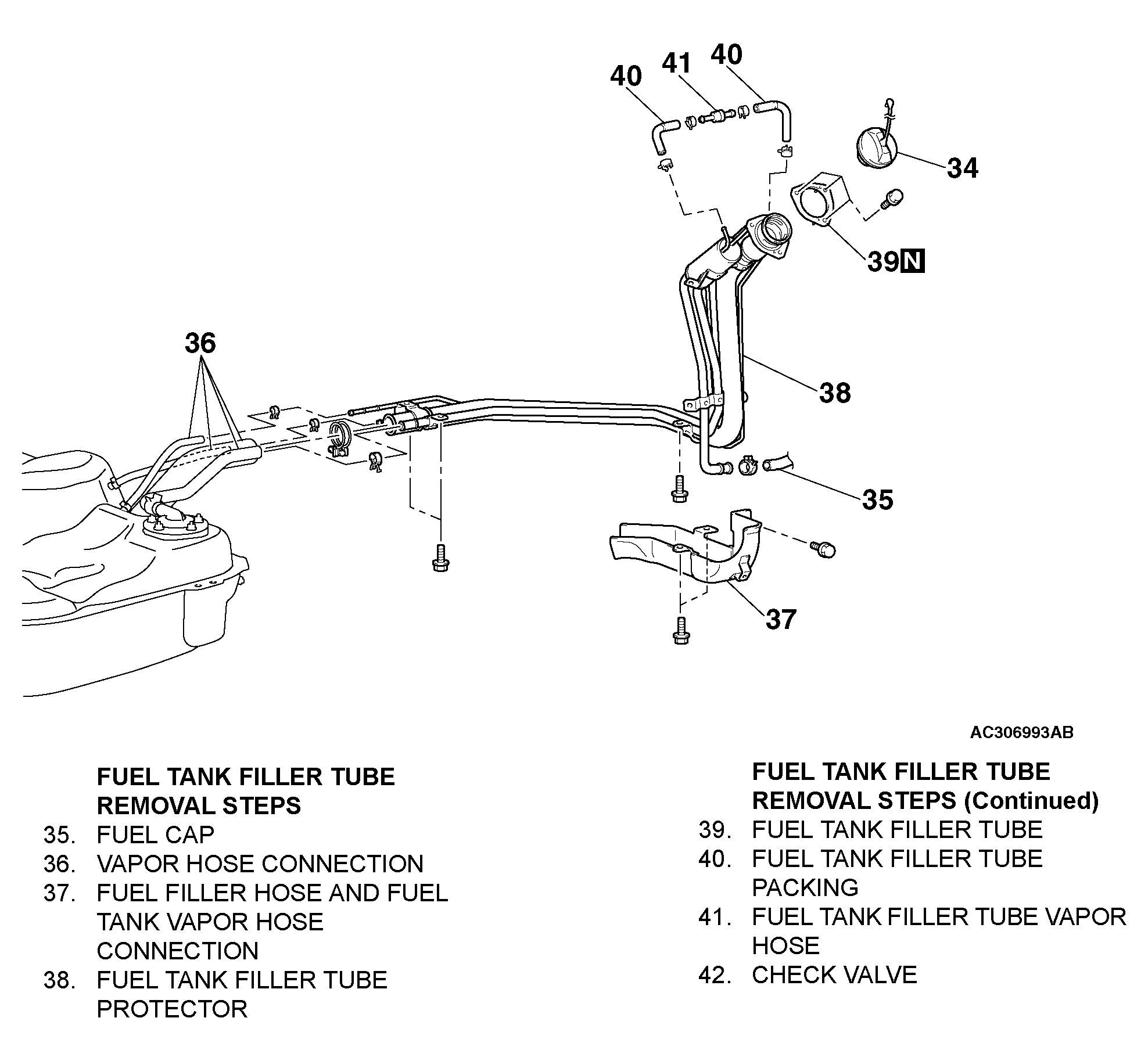

Fig 3: Fuel Tank Hoses & Filler Pipe
G04253788Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
