Removal And Installation: Notes

CAUTION: The fastener marked with* should be temporarily tightened first and then fully tightened with the engine weight applied on the vehicle body.

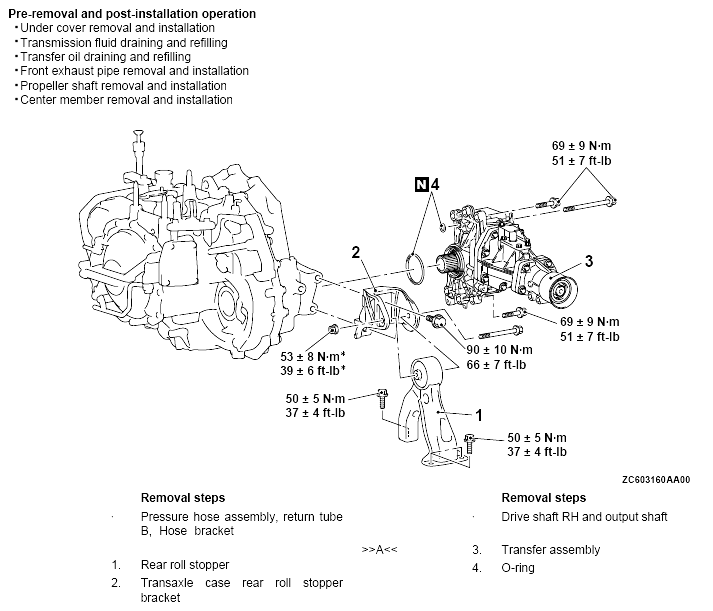

Fig 1: Removal / Installation Of Transfer Assembly Replacement Components With Torque Specifications
G04871171Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
