Removal And Installation: Notes

WARNING: When removing and installing the transaxle control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

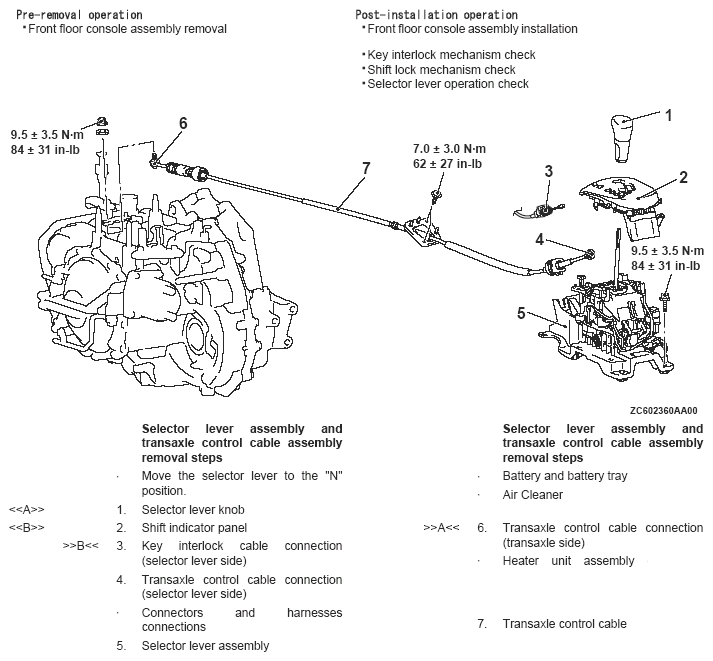

Fig 1: Identifying Removal / Installation Of Transaxle Control Components
G04871151Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
