General Information: Structure

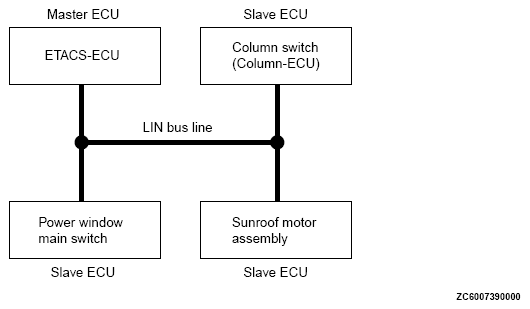

Fig 1: Identifying Local Interconnect Network Structure

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Master and slave ECUs are connected to the LIN bus lines. The master ECU is the ETACS*-ECU, and the slave ECUs are the column switch (column-ECU), the power window main switch and the sunroof motor assembly. The master ECU requests these slave ECUs to communicate each other via communication lines.
