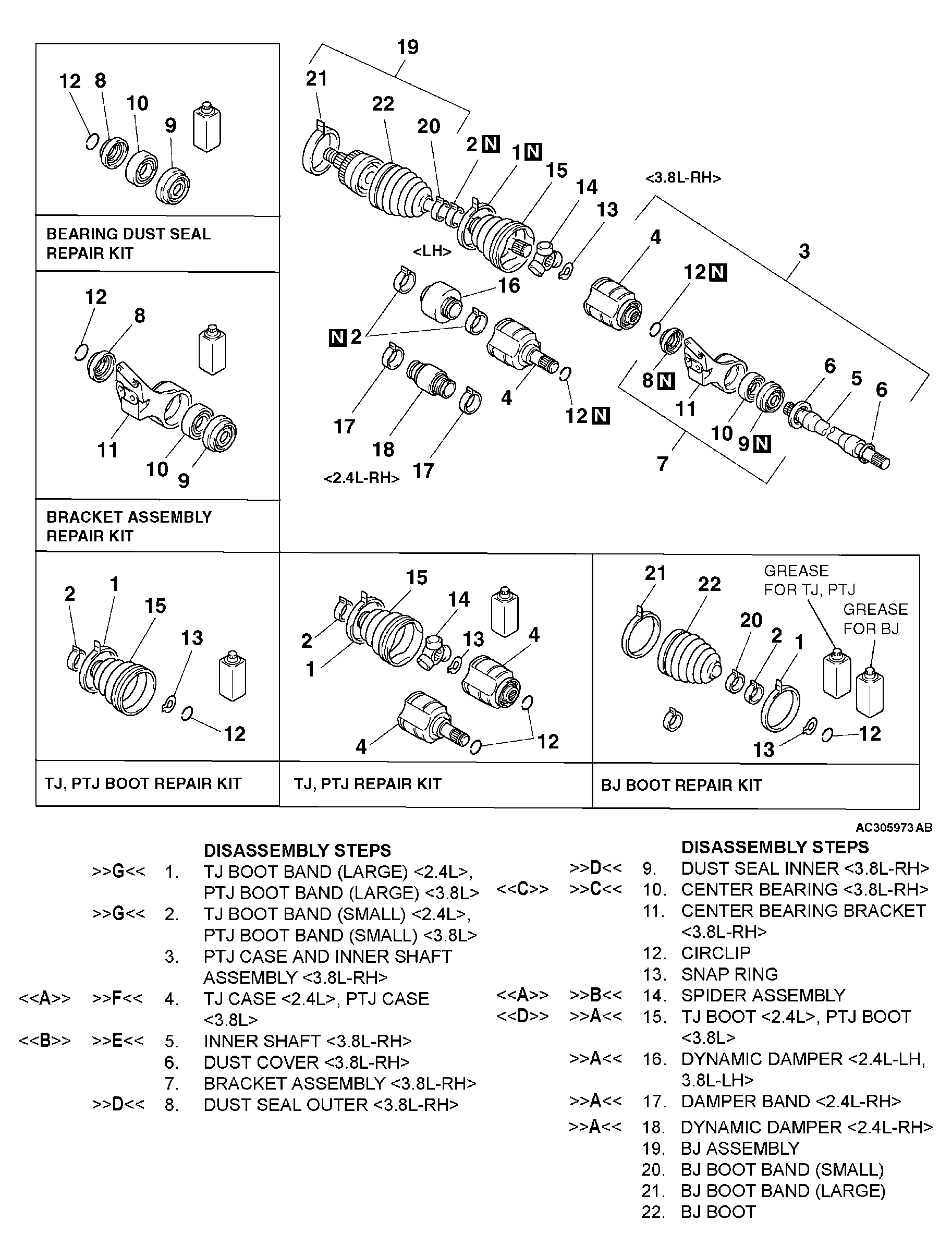

Disassembly And Assembly: Notes
CAUTION:
- For vehicles with ABS, be careful not to damage the ABS rotor, which is attached to the BJ outer race during disassembly and assembly.
- Never disassemble the BJ assembly except when replacing the BJ boot.
NOTE:
- TJ: Tripod Joint
- PTJ: Pillow Tripod Joint
- BJ: Birfield Joint
- For BJ boot removal and installation, refer to BJ BOOT REPLACEMENT .
Required Special Tools:
- MB990810: Side Bearing Puller
- MB990930: Installer Adapter
- MB990932: Installer Adapter
- MB990934: Installer Adapter
- MB990938: Bar (snap-in type)
- MB990890: Rear Suspension Bushing Base
- MB991172: Inner Shaft Installer Base
- MB991248: Inner Shaft Remover
