Removal And Installation

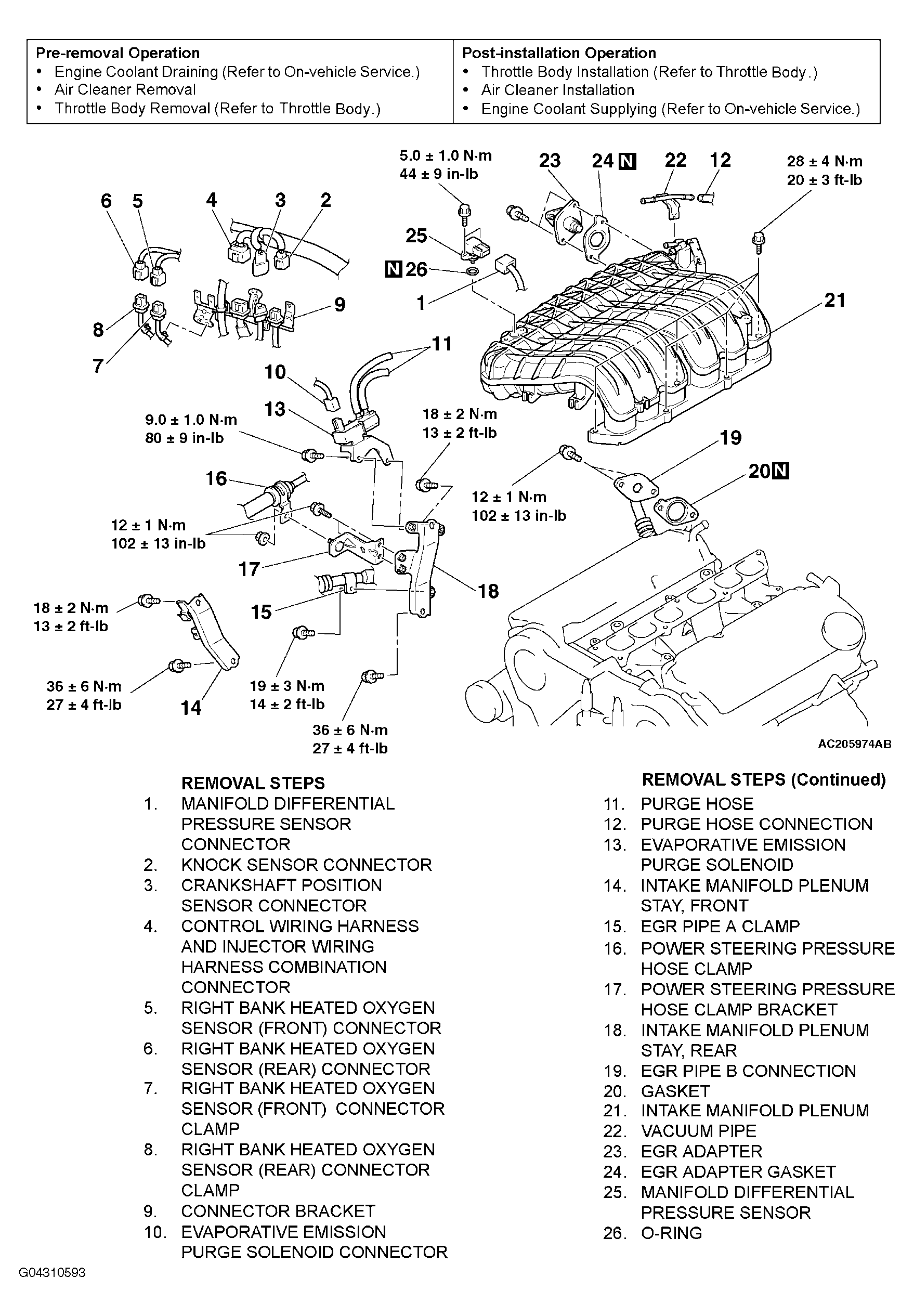

Fig 1: Exploded View Of Intake Manifold Plenum With Torque Specifications

G04310593

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
