Auto-Cruise Control Main Switch Check

  1. Turn the ignition switch to the "ON" position.
  2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "CRUISE" (MAIN) switch is switched "ON".

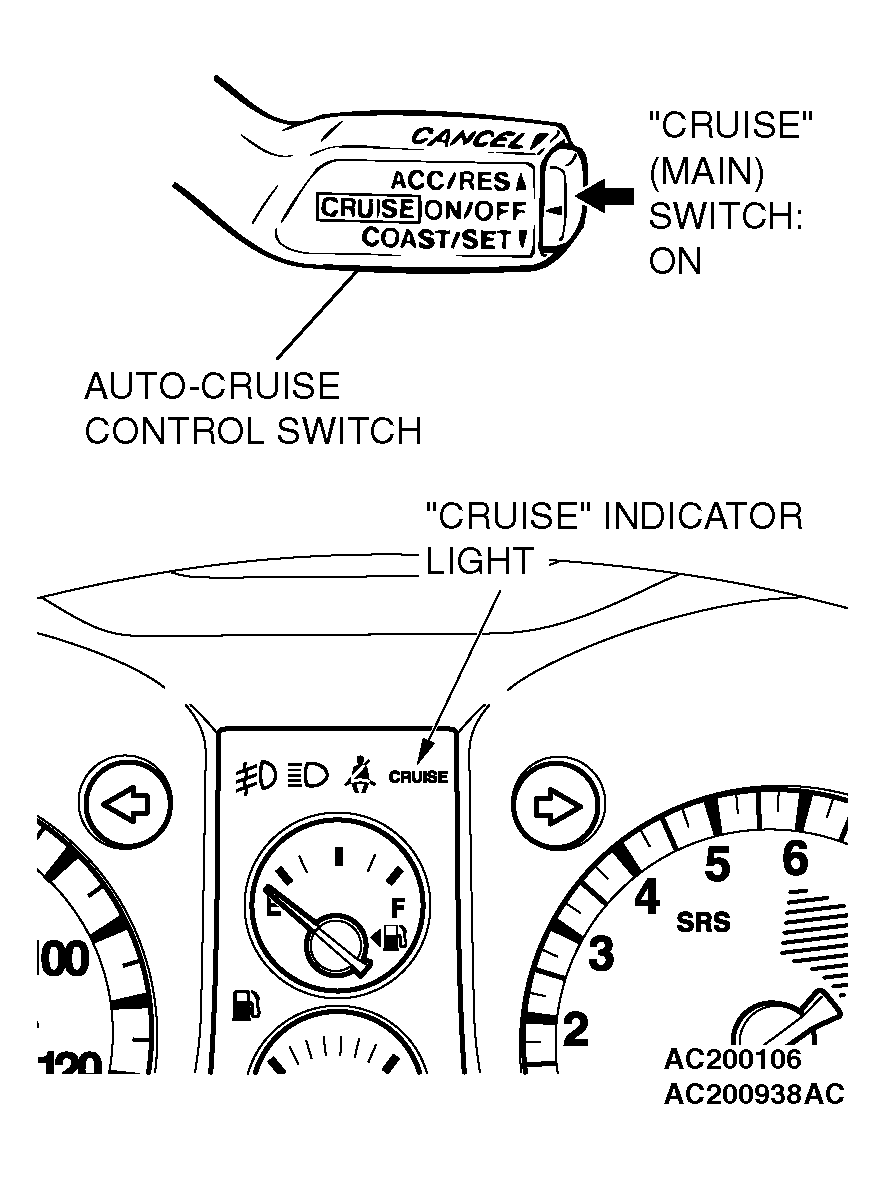

    Fig 1: Identifying Auto-Cruise Control Main Switch Check
    G04302221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
