Backup Light Switch

Check for continuity between terminals.

CONTINUITY CHART

SWITCH CONDITION CONTINUITY
Pressed Open
Released Conductive

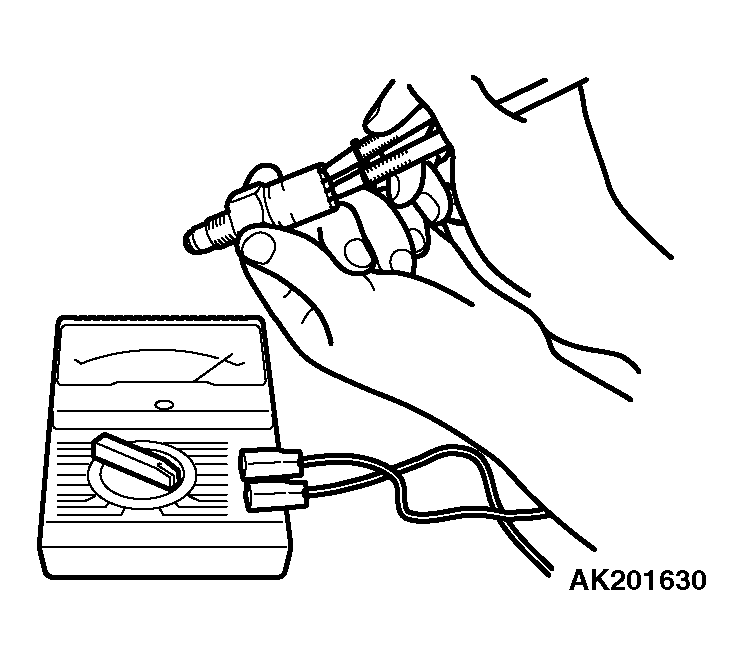

Fig 1: Checking Continuity Between Terminals
G04302366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
