Special Tools
SPECIAL TOOLS SPECIFICATIONS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

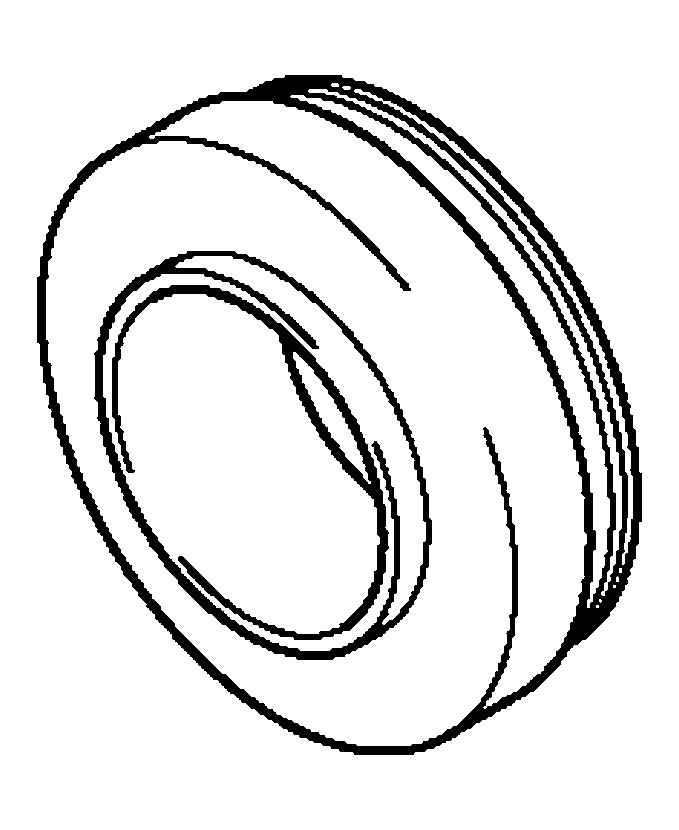

| MB990935 Installer adapter |
MB990935-01 or General service tool | Installation of differential case taper roller bearing outer race | |

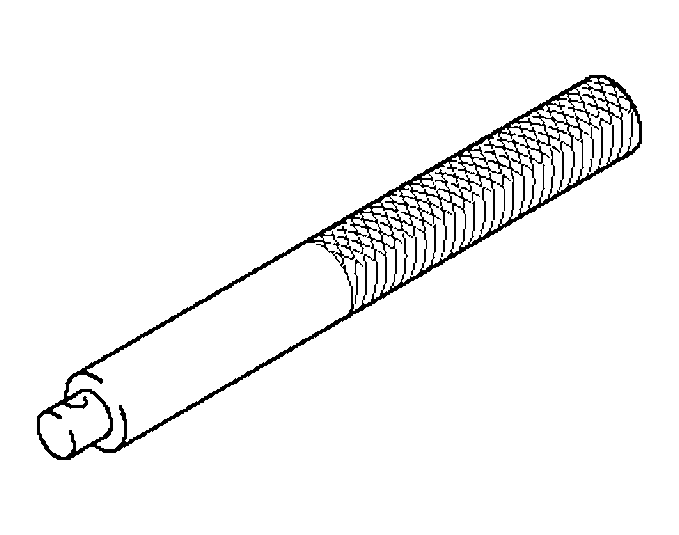

| MB990938 Handle |
MB990938-01 | Use with Installer adapter | |
| MB990927 Installer adapter |
MB990927-01 or General service tool | Installation of sealing cap | |

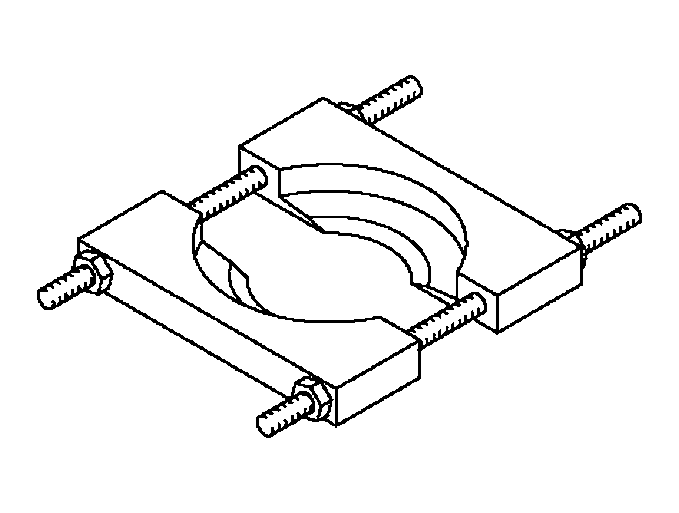

| MD998801 Bearing remover |
MD998348-01 or General service tool | Installation and removal of gears, bearings and sleeves | |
| MD998812 Installer cap |
General service tool | Use with Installer and Installer adapter | |
| MD998813 Installer-100 |
General service tool | Use with Installer cap and Installer adapter | |
| MD998816 Installer adapter (30) |
General service tool | Installation of input shaft front bearing | |
| MD998825 Installer adapter (52) |
General service tool | Installation of 1st-2nd speed synchronizer hub, 3rd-4th speed synchronizer hub and 1st speed gear sleeve | |
| MD998824 Installer adapter (50) |
General service tool | Installation of 4th speed gear sleeve and 5th speed gear | |
| Installer adapter (38) | MD998818 | Installation of input shaft rear bearing, roller bearing inner race, reverse gear sleeve and output shaft rear ball bearing | |

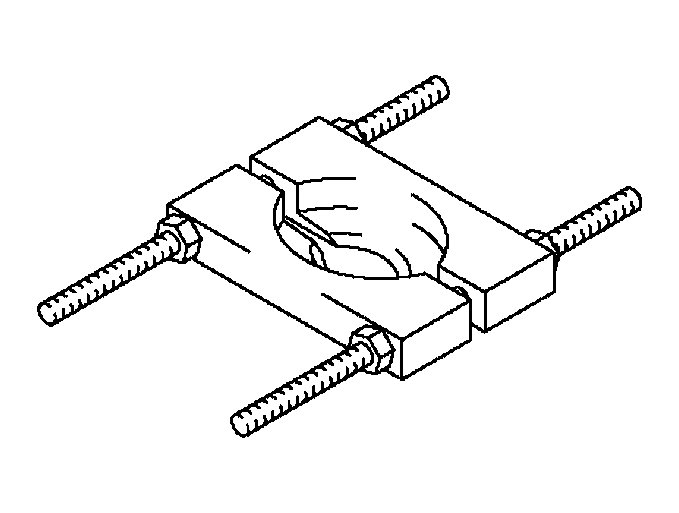

| MD998917 Bearing remover |
General service tool | Installation and removal of gears, bearing and sleeves | |
| MD998814 Installer-200 |
MIT304180 | Use with Installer cap and Installer adapter | |
| MD998822 Installer adapter (46) |
General service tool | Installation of 2nd speed gear sleeve and 3rd speed gear | |
| MD998819 Installer adapter (40) |
General service tool | Installation of 5th-reverse speed synchronizer hub, differential case bearing, 4th speed gear and 5th speed gear sleeve | |
| MD999566 Claw |
General service tool | Removal of taper roller bearing outer race | |
| MD998772 Valve spring compressor |
General service tool | Removal of output shaft front roller bearing outer race | |
| MD998346 Bearing outer race remover |
MD998346-01 or General service tool | Removal of output shaft front roller bearing outer race | |
| MB990934 Installer adapter |
MB990934-01 or General service tool | Installation of output shaft front roller bearing outer race | |

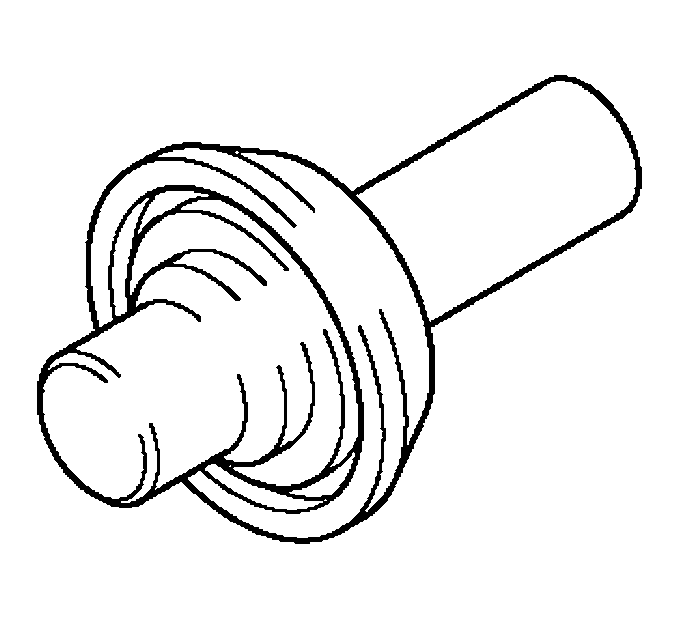

| MD998325 Differential oil seal installer |
MD998325-01 | Installation of differential oil seal | |
| MB990926 Installer adapter |
MB990926-01 or General service tool | Installation of clutch housing input shaft oil seal | |
| MB990930 Installer adapter |
MB990930-01 or General service tool | Removal of center differential case front taper roller bearing bearing < W5M42 > | |
| MD998830 Installer adapter (66) |
- | Installation of center differential case front taper roller bearing < W5M42 > | |
| MD998823 Installer adapter (48) |
General service tool | Installation of differential case taper roller bearing < F5M42 > and center differential case rear taper roller bearing < W5M42 > | |
| MB990937 Installer adapter |
General service tool | Installation of transfer oil seal < W5M42 > | |
| MD998800 Oil seal adapter |
General service tool | Installation of transfer oil seal < W5M42 > | |
| MB990887 Ring |
- | Installation of transfer oil seal < W5M42 > | |
| MB990891 Bushing remover installer base |
- | Using with ring < W5M42 > | |
| MB990933 Installer adapter |
- | Installation of transfer oil seal < W5M42 > |
