Special Tools
SPECIAL TOOLS SPECIFICATIONS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

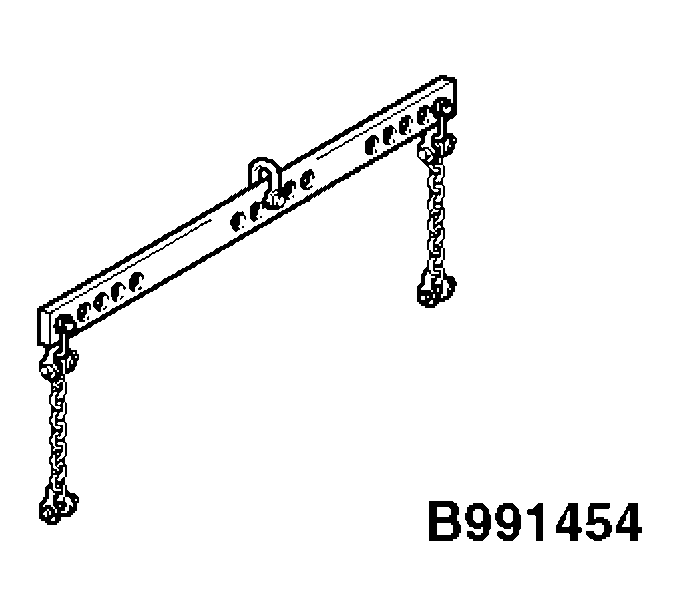

| MB991454 Engine hanger balancer |
MZ203827-01 | When the engine hanger is used: Supporting the engine assembly during removal and installation of the transaxle assembly
NOTE:
Special tool MB991454 is a part of engine hanger attachment set MB991453.
|
|

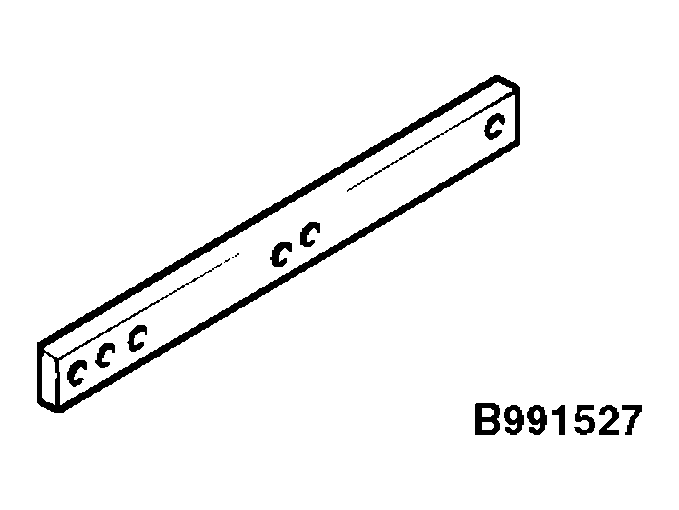

| MB991527 Hanger |
- | ||

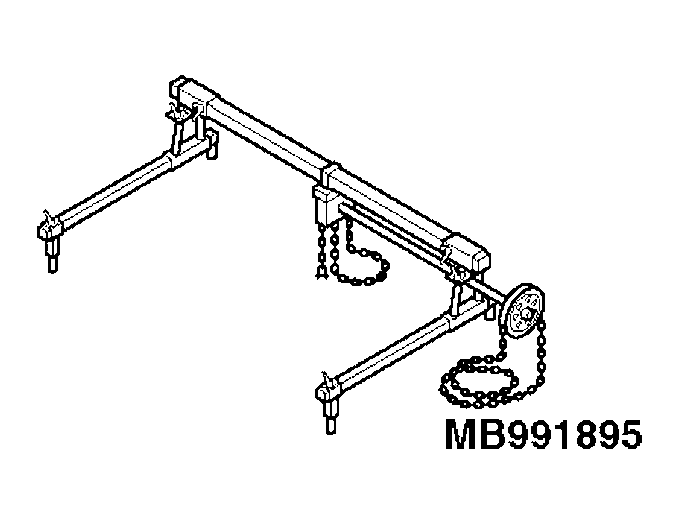

| MB991895 Engine hanger |
- | ||

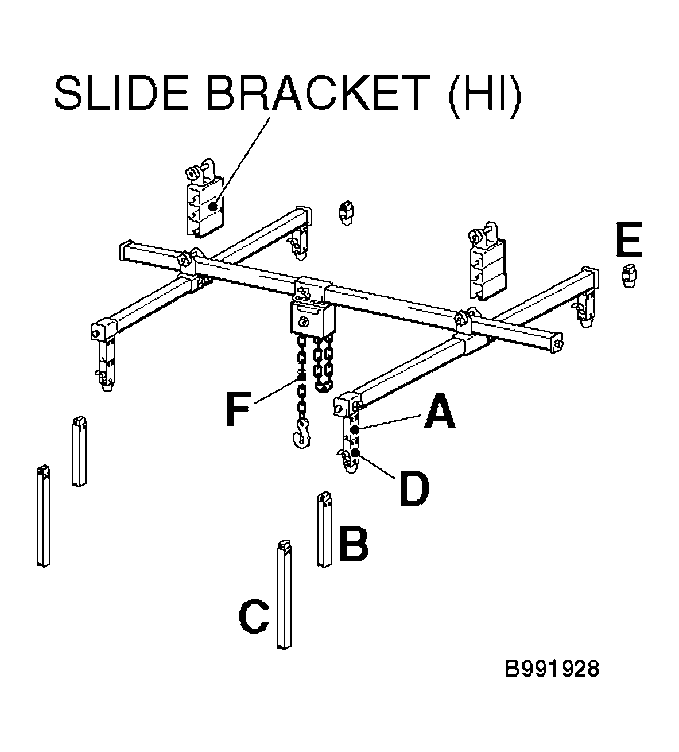

| MB991928 Engine hanger A: MB991929 Joint (50) x 2 B: MB991930 Joint (90) x 2 C: MB991931 Joint (140) x 2 D: MB991932 Foot (standard) x 4 E: MB991933 Foot (short) x 2 F: MB991934 Chain and hook assembly |
- |
