Special Tools
SPECIAL TOOLS SPECIFICATIONS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

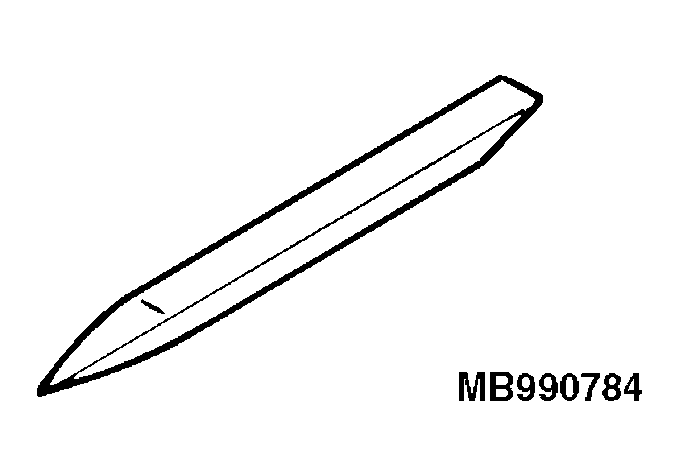

| MB990784 Ornament remover | General service tool | Removal of instrument panel garnish and meter bezel. | |

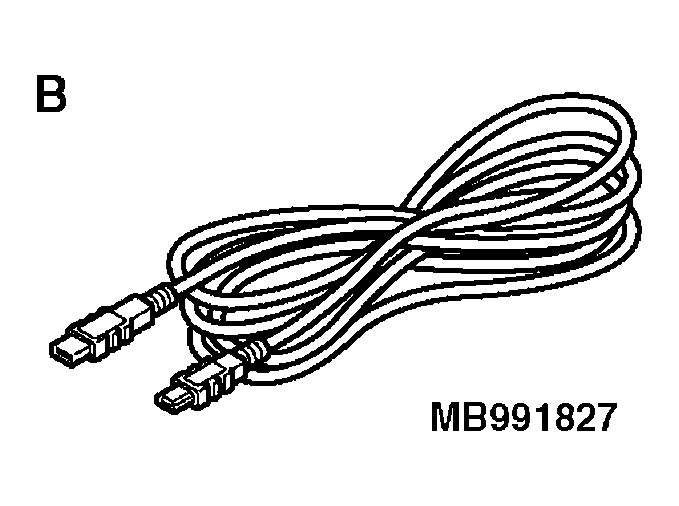

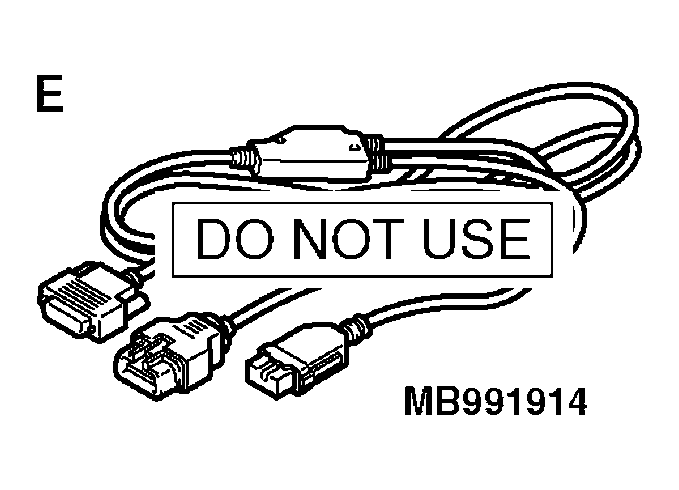

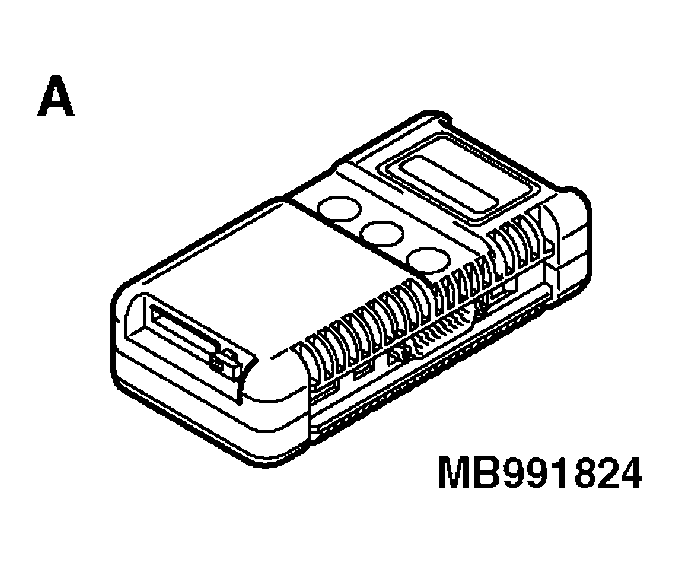

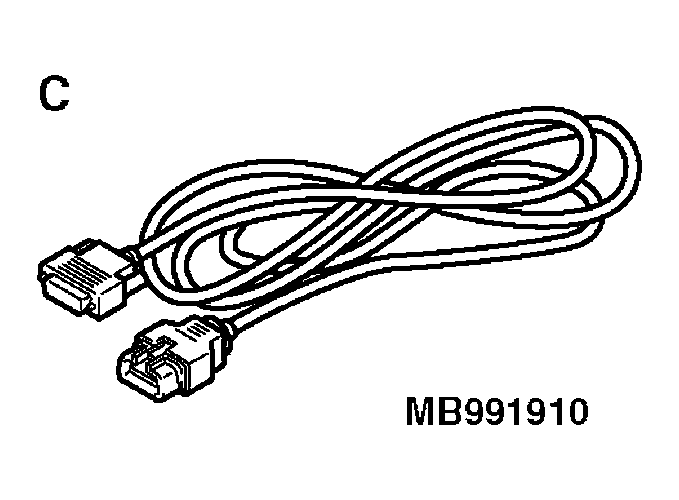

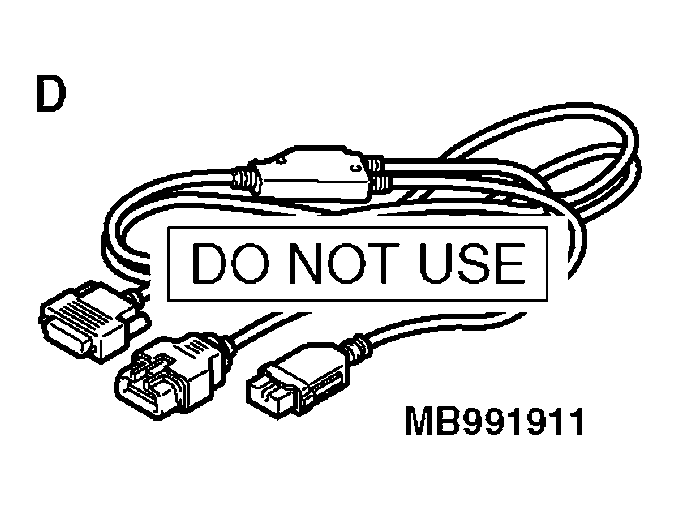

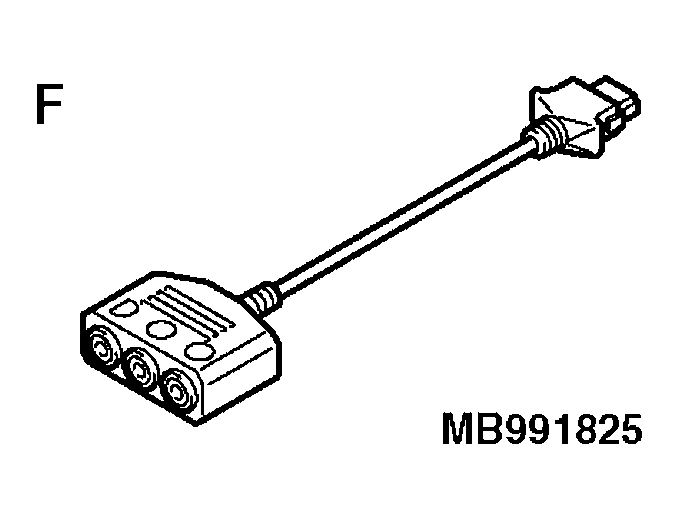

| MB991958 A: MB991824 B: MB991827 C: MB991910 D: MB991911 E: MB991914 F: MB991825 G: MB991826 MUT-III Sub Assembly A: Vehicle Communication Interface B: MUT-III USB Cable C: MUT-III Main Harness A (Vehicles with CAN communication system) D: MUT-III Main Harness B (Vehicles without CAN communication system) E: MUT-III Main Harness C (for Daimler Chrysler models only) F: MUT-III Adapter Harness G: MUT-III Trigger Harness |
MB991824-KIT
NOTE:

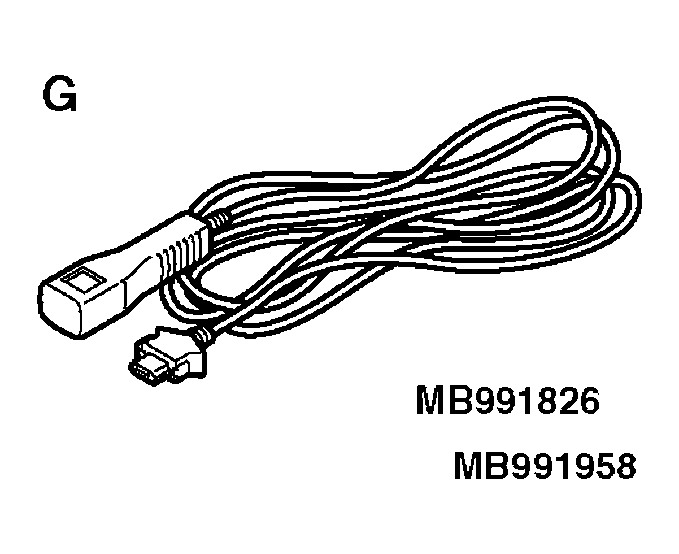

G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
|
Reading MFI system diagnostic trouble code
CAUTION:
For vehicles with CAN communication, use MUT-III Main Harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.
NOTE:
This vehicle supports only the CAN communication between the SRS-ECU and the MUT-III.
|
|

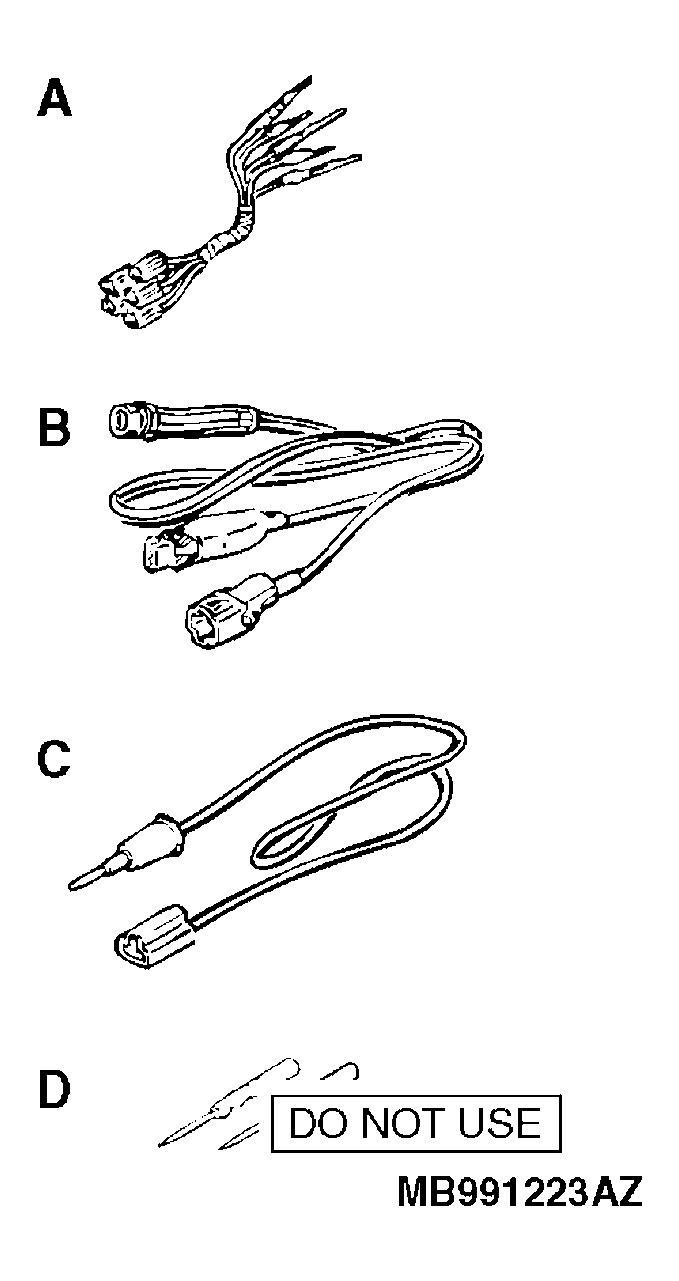

| MB991223 A: MB991219 B: MB991220 C: MB991221 D: MB991222 Harness set A: Test harness B: LED harness C: LED harness adapter D: Probe |
General service tools | Making voltage and resistance measurements during troubleshooting A: Connect pin contact pressure inspection B: Power circuit inspection C: Power circuit inspection D: Commercial tester connection |
|

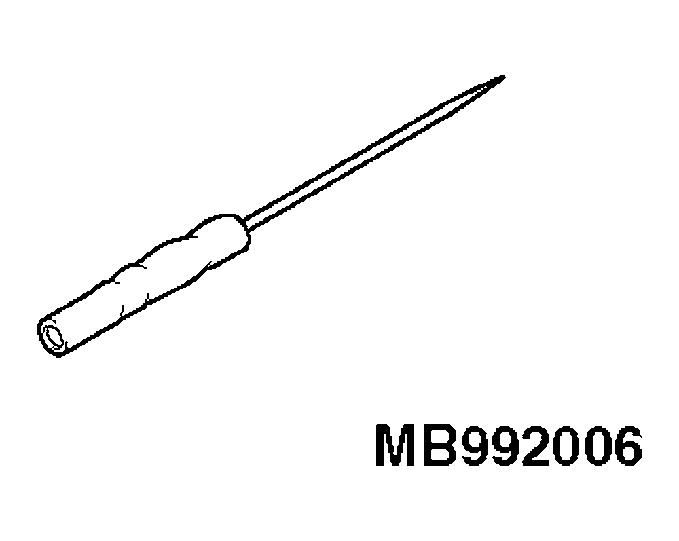

| MB992006 Extra fine probe | General service tool | Making voltage and resistance measurement during troubleshooting |
