Fuel Level Sensor Float Height

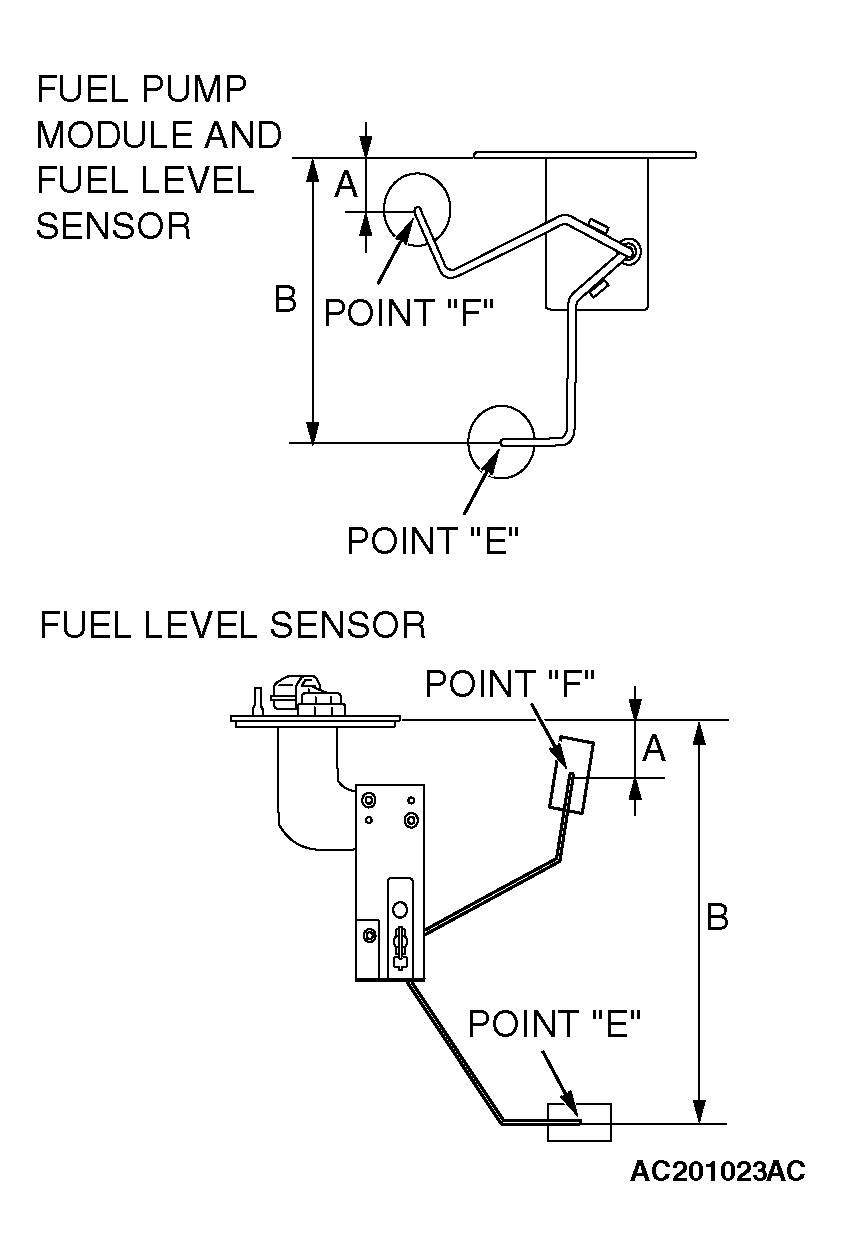

- Move the float and measure height A at point "F" (highest) and B at point "E" (lowest) with the float arm touching stopper.
Standard value < FUEL PUMP MODULE & FUEL LEVEL SENSOR >:
- A: 36.7 mm (1.44 inches)
- B: 150.3 mm (5.91 inches)
Standard value < FUEL LEVEL SENSOR >:
- A: 20.8 mm (0.82 inch)
- B: 193.8 mm (7.63 inches)
- Adjust the float arm to the standard value, then go to the thermistor check.
