Removal And Installation

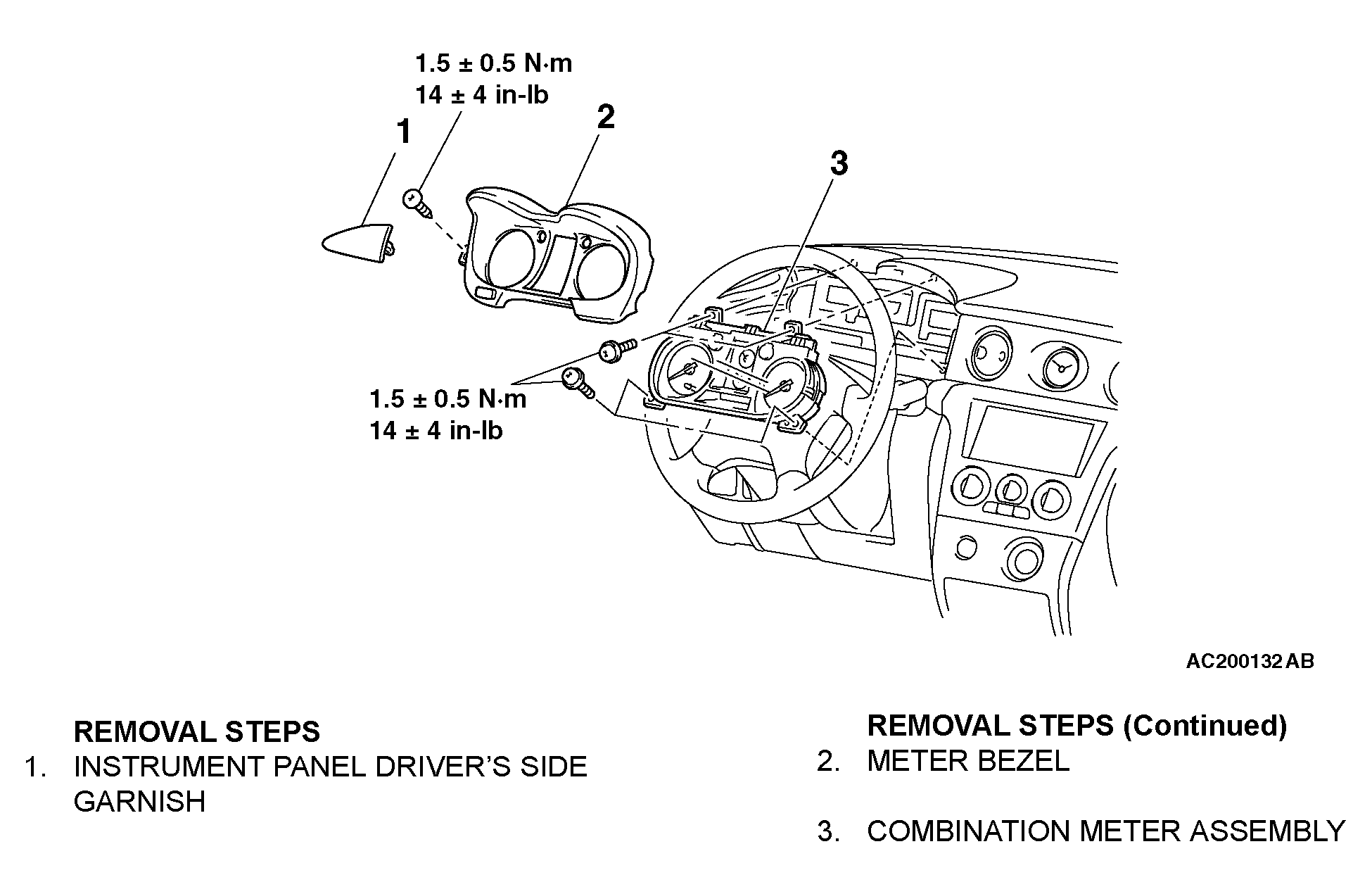

Fig 1: Removing Combination Meter Assembly
G04305238Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
