Disassembly And Assembly: Notes

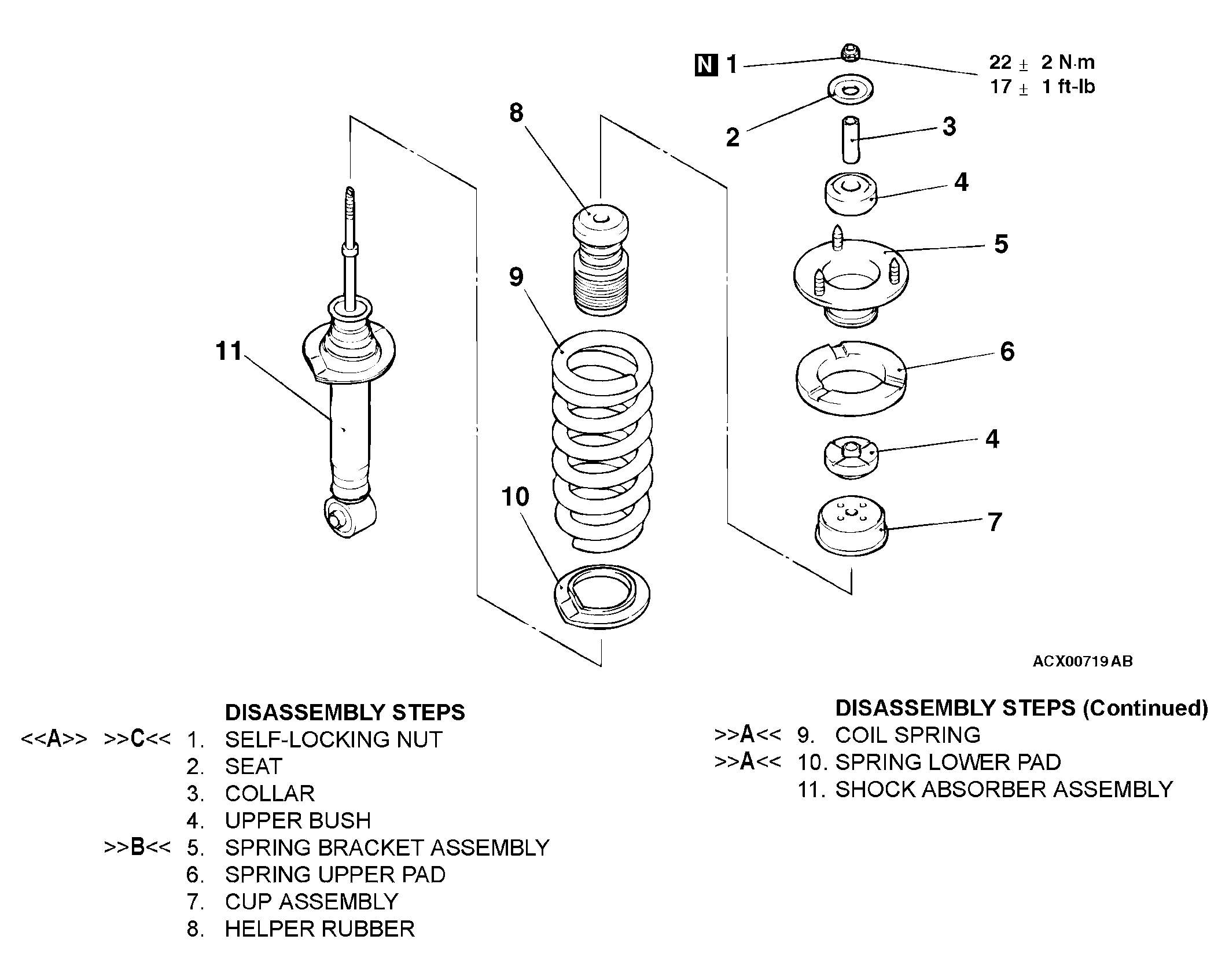

Fig 1: Disassembling/Assembling Shock Absorber Assembly
G04267041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
