DTC 33: Stoplight Switch System: Notes

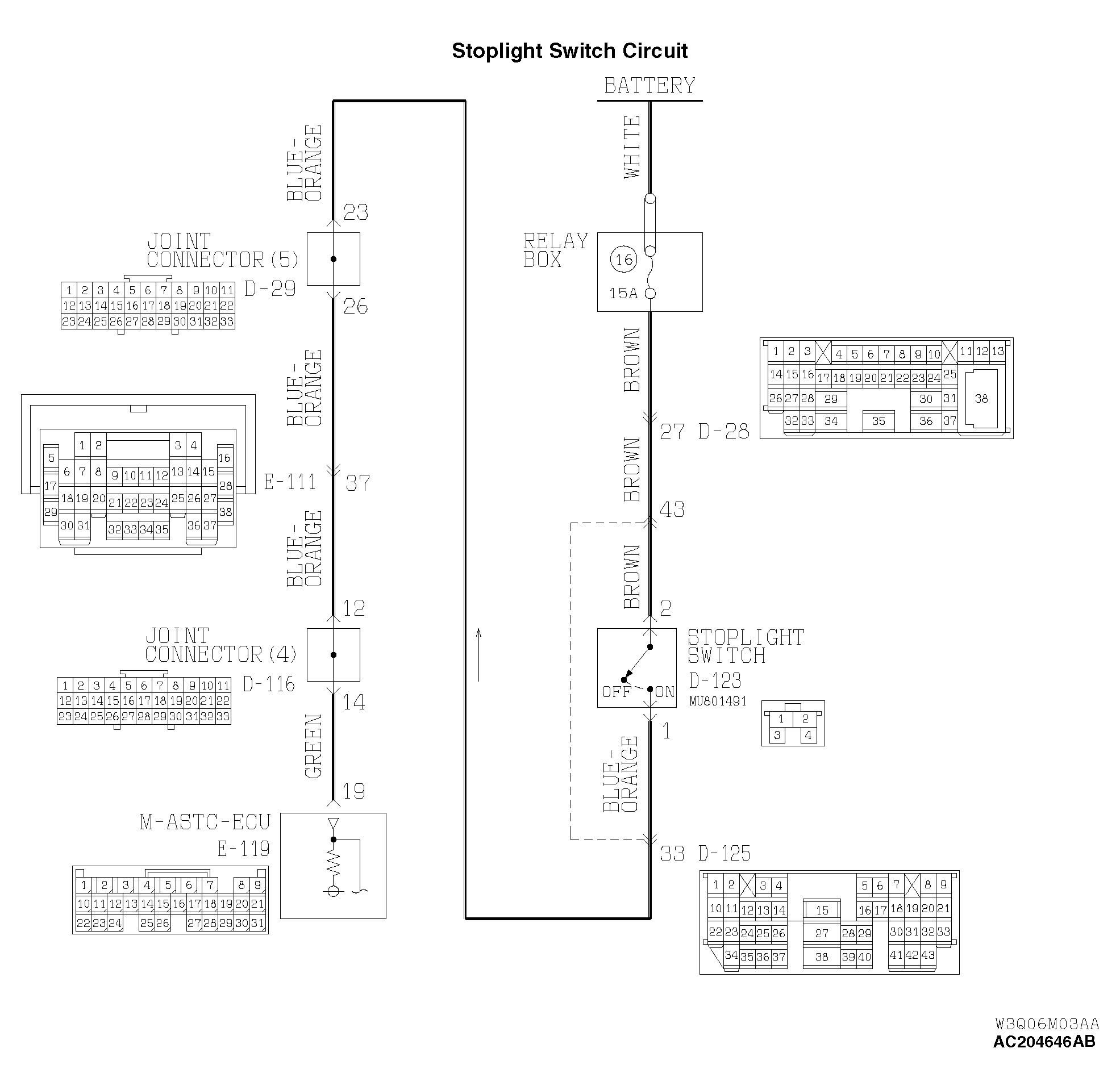

Fig 1: Stoplight Switch Circuit Diagram (1 Of 2)
G04267397Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

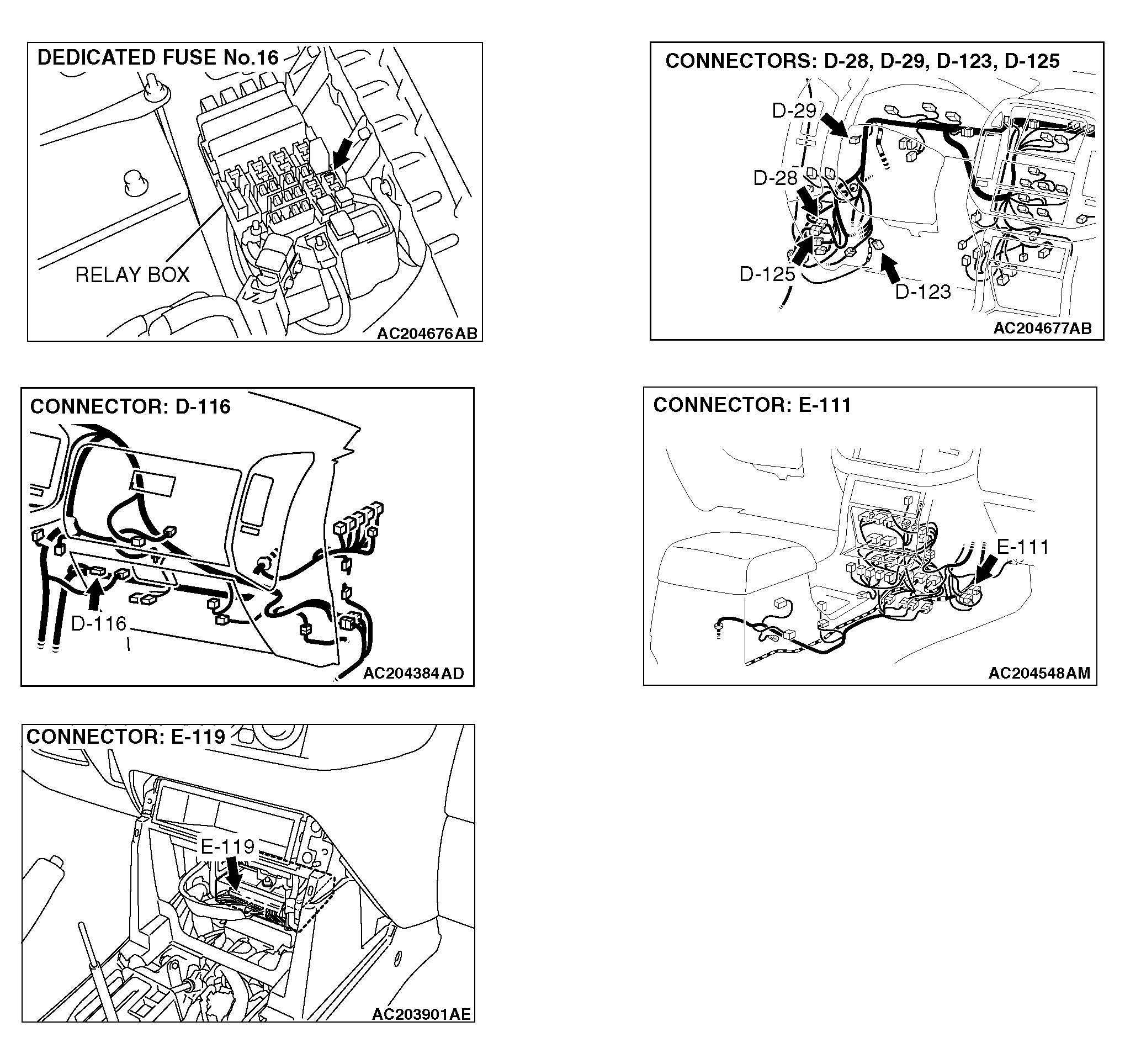

Fig 2: Stoplight Switch Circuit Diagram (2 Of 2)
G04267398Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
