DTC 11: Transponder Communication System or Radio Interference of Encrypted Code: Notes

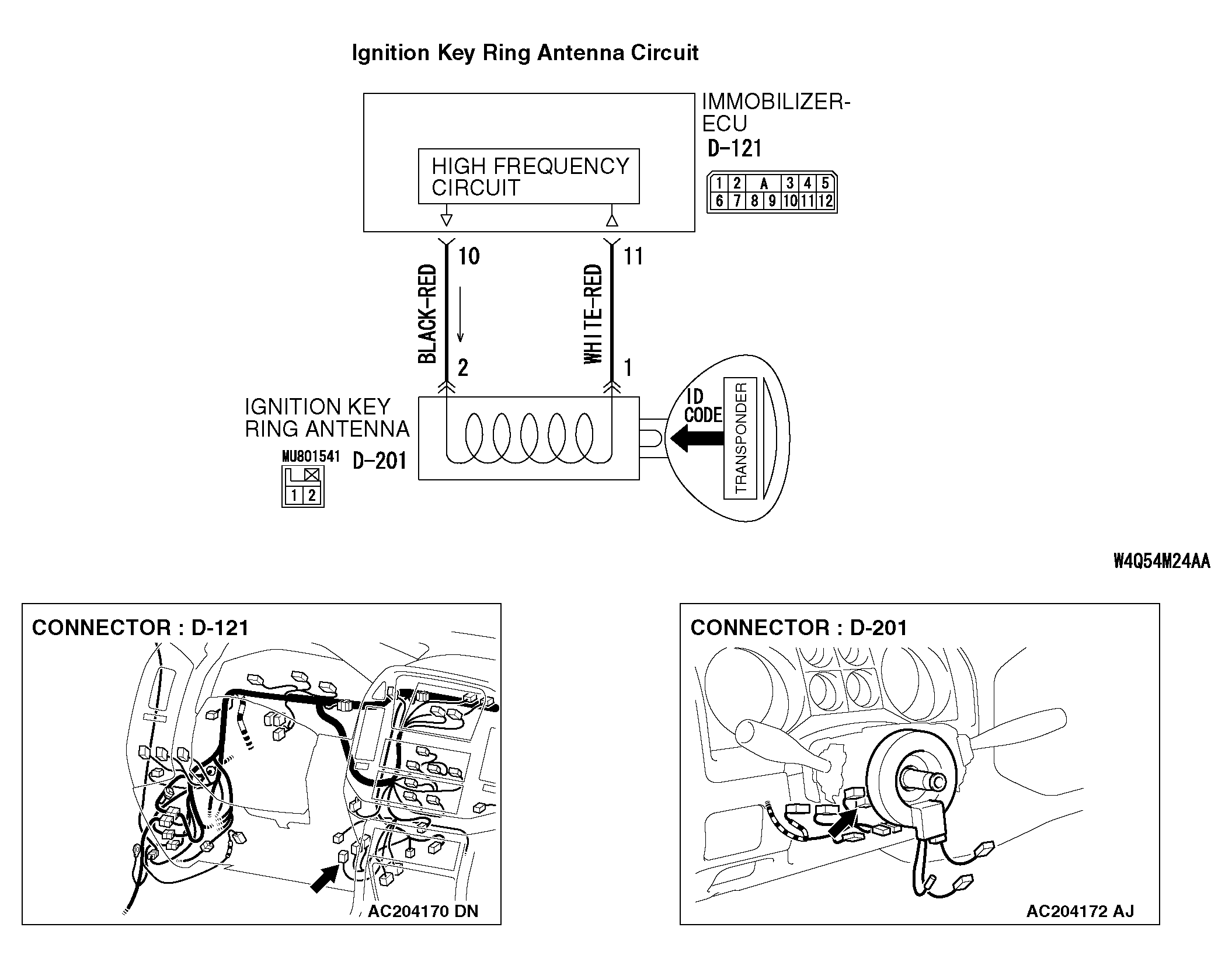

Fig 1: Ignition Key Ring Antenna - Circuit Diagram

G04268315

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
