Disassembly And Assembly: Notes

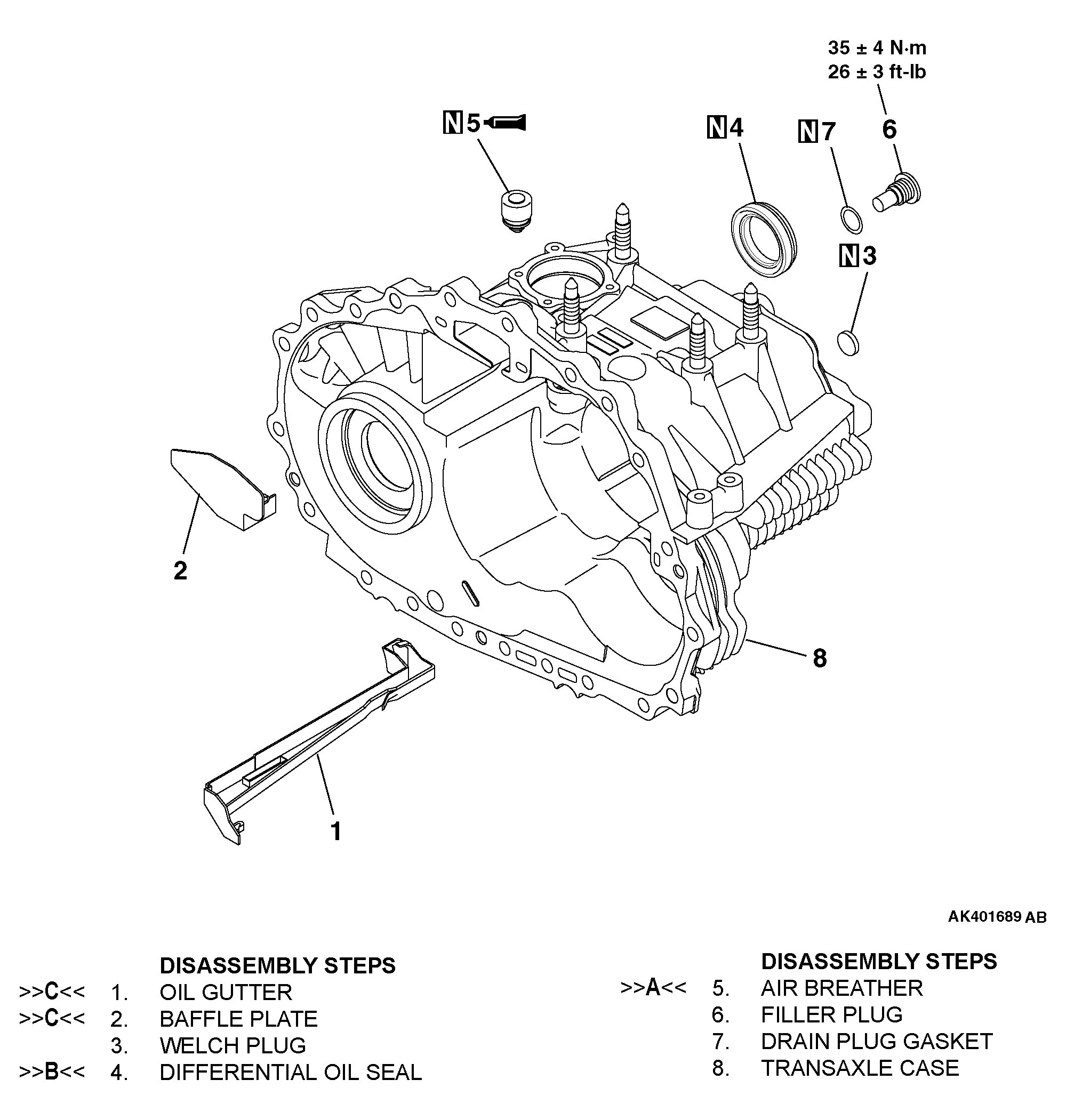

Fig 1: Disassembling\Assembling Transmission Case
G04296947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
