Disassembly And Assembly: Notes

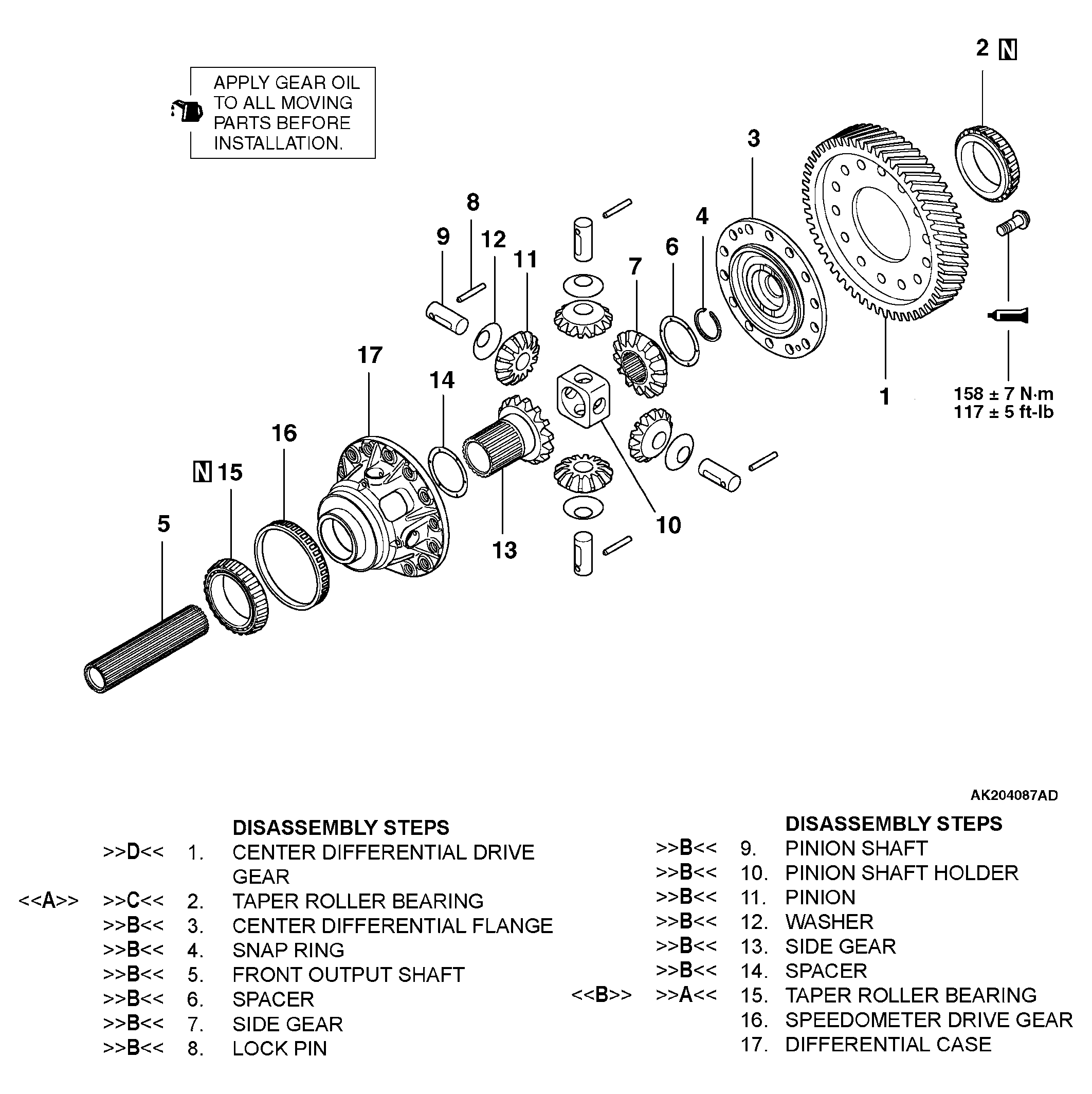

Fig 1: Disassembling\Assembling Center Differential
G04296949Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
